Out of stock

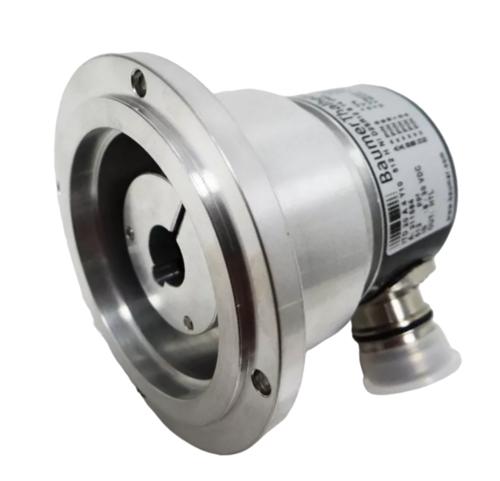

ITD 20 A 4 Y10 incremental encoder, engineered for high precision in position measurements.
With a compact design and lightweight structure, it seamlessly integrates into various applications.
Experience superior durability and an IP 65 protection rating, ensuring reliability in demanding environments.
The ITD 20 A 4 Y10 is a versatile incremental encoder from Baumer, designed for precise position measurement in industrial applications. It features a blind hollow shaft and optical sensing technology, ensuring reliable and accurate performance across a wide range of applications.
This encoder not only offers a high pulse count for enhanced measurement precision but also is built with robust materials capable of withstanding harsh conditions. The user-friendly design and easy installation process make it a practical choice for engineers and technicians alike.
Datasheet:
- Voltage Supply: 5 VDC ±5 %, 8…30 VDC
- Reverse Polarity Protection: Yes
- Consumption w/o Load: ≤100 mA
- Pulses per Revolution: 50…1024
- Reference Signal: Zero pulse, width 90°
- Sensing Method: Optical
- Output Frequency: ≤120 kHz
- Output Signals: A, B, N + inverted
- Output Stages: TTL linedriver (short-circuit proof), HTL push-pull (short-circuit proof)
- Interference Immunity: EN 61000-6-2
- Emitted Interference: EN 61000-6-3
Mechanical Design:
- Size (Flange): ø58 mm
- Shaft Type: ø8…16 mm (blind hollow shaft)
- Mounting Kit: 001
- Protection EN 60529: IP 65
- Operating Speed: ≤8000 rpm
- Starting Torque: ≤0.01 Nm (+20 °C)
- Material: Housing: aluminium, black, powder-coated; Shaft: stainless steel
- Operating Temperature: -20…+70 °C
- Relative Humidity: 90 % non-condensing
- Resistance: EN 60068-2-6 Vibration 10 g, 55-2000 Hz; EN 60068-2-27 Shock 100 g, 11 ms
- Connection: Connector M23 type 2, 12-pin
- Weight: Approx. 430 g
