Baumer ITD 20 A 4

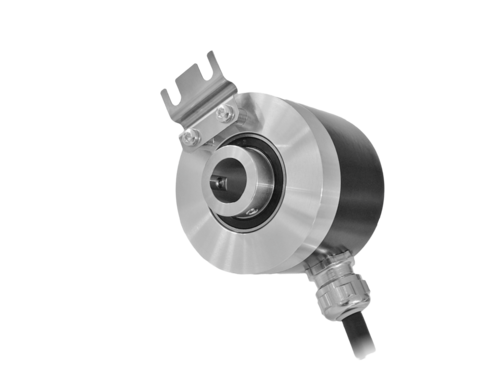

The ITD 20 A 4 is a versatile incremental encoder from Baumer, designed for precise position measurement in industrial applications. It features a blind hollow shaft and optical sensing technology, ensuring reliable and accurate performance across a wide range of applications.

Datasheet:

• Voltage Supply: 5 VDC ±5 %, 8…30 VDC
• Reverse Polarity Protection: Yes
• Consumption w/o Load: ≤100 mA
• Pulses per Revolution: 50…1024
• Reference Signal: Zero pulse, width 90°
• Sensing Method: Optical
• Output Frequency: ≤120 kHz
• Output Signals: A, B, N + inverted
• Output Stages: TTL linedriver (short-circuit proof), HTL push-pull (short-circuit proof)
• Interference Immunity: EN 61000-6-2
• Emitted Interference: EN 61000-6-3

Mechanical Design:

• Size (Flange): ø58 mm
• Shaft Type: ø8…14 mm (blind hollow shaft)
• Mounting Kit: 001
• Protection EN 60529: IP 65
• Operating Speed: ≤8000 rpm, ≤5000 rpm IP 65 (>70 °C)
• Starting Torque: ≤0.01 Nm (+20 °C)
• Material: Housing: aluminium, black, powder-coated; Shaft: stainless steel
• Operating Temperature: -20…+70 °C, -20…+100 °C
• Relative Humidity: 90 % non-condensing
• Resistance: EN 60068-2-6 Vibration 10 g, 55-2000 Hz; EN 60068-2-27 Shock 100 g, 6 ms
• Connection: Cable 1 m
• Weight: Approx. 260 g

This encoder is built to withstand harsh environmental conditions, making it suitable for various industrial settings. Its robust design ensures longevity and durability, while the optical sensing method enhances its accuracy. The ITD 20 A 4 is an essential component for applications requiring reliable position feedback.
