ITD 20 B14 is an advanced incremental encoder designed for precision applications.
Featuring a 6 mm solid shaft and optical sensing method, it ensures reliable performance.

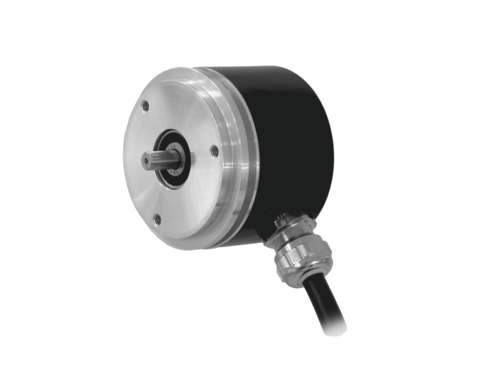

The ITD 20 B14 is an incremental encoder with a ø6 mm diameter solid shaft and synchronous flange. It provides accurate speed and position measurement, making it ideal for a variety of industrial applications.
With a maximum of 1024 pulses per revolution, this encoder delivers high-resolution feedback. It is also equipped with TTL or HTL output signals for compatibility with various systems.
Datasheet
Electrical specifications:
- Supply voltage: 5 VDC ±5% or 8…30 VDC
- Reverse polarity protection: Yes
- Consumption without load: ≤100 mA
- Pulses per revolution: 50 … 1024
- Counting signal: Zero pulse, 90° width
- Measurement method: Optical
- Output frequency: ≤120 kHz
- Output signals: A, B, N + inversion
- Output stages: TTL linear driver (short-circuited), HTL push-pull (short-circuited)
- Interference resistance: EN 61000-6-2
- Radiated interference: EN 61000-6-3
Mechanical design:
- Size (flange): ø58 mm
- Shaft type: ø6 mm solid shaft
- Permissible shaft load: ≤20 N axial, ≤40 N radial
- Flange type: Synchro flange
- Protection according to EN 60529: IP 65
- Operating speed: ≤12,000 rpm
- Starting torque: ≤0.01 Nm (at +20 °C)
- Material:
- Housing: aluminum, black, powder coated
- Shaft: stainless steel
- Operating temperature: -20…+70 °C or -20…+100 °C (depending on the configuration)
- Relative humidity: 90 % without condensation
- Resistance:
- EN 60068-2-6 Vibration 10 g, 55-2000 Hz
- EN 60068-2-27 Shock 100 g, 11 ms
- Connection: 1 m cable
- Weight: approx. 310 g
