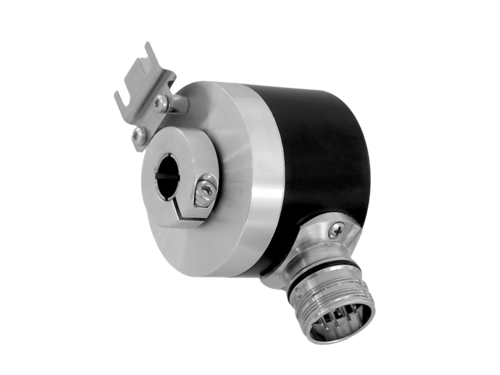

ITD 22 A 4 Y36 incremental encoder, designed for exceptional precision and reliability in industrial applications. This encoder features a blind hollow shaft with a diameter range of 10 to 14 mm and is capable of delivering up to 6000 pulses per revolution.
The ITD 20 A 4 is a versatile incremental encoder from Baumer, designed for precise position measurement in industrial applications.
Datasheet:
- Voltage Supply: 5 VDC ±5 %, 8…30 VDC
- Reverse Polarity Protection: Yes
- Consumption w/o Load: ≤100 mA
- Pulses per Revolution: 50…1024
- Reference Signal: Zero pulse, width 90°
- Sensing Method: Optical
- Output Frequency: ≤120 kHz
- Output Signals: A, B, N + inverted
- Output Stages: TTL linedriver (short-circuit proof), HTL push-pull (short-circuit proof)
- Interference Immunity: EN 61000-6-2
- Emitted Interference: EN 61000-6-3
Mechanical Design:
- Size (Flange): ø58 mm
- Shaft Type: ø8…14 mm (blind hollow shaft)
- Mounting Kit: 001
- Protection EN 60529: IP 65
- Operating Speed: ≤8000 rpm, ≤5000 rpm IP 65 (>70 °C)
- Starting Torque: ≤0.01 Nm (+20 °C)
- Material: Housing: aluminium, black, powder-coated; Shaft: stainless steel
- Operating Temperature: -20…+70 °C, -20…+100 °C
- Relative Humidity: 90 % non-condensing
- Resistance: EN 60068-2-6 Vibration 10 g, 55-2000 Hz; EN 60068-2-27 Shock 100 g, 6 ms
- Connection: Cable 1 m
- Weight: Approx. 260 g
This encoder is ideal for applications that require high reliability and performance, providing excellent measurement capabilities even in challenging environments.
