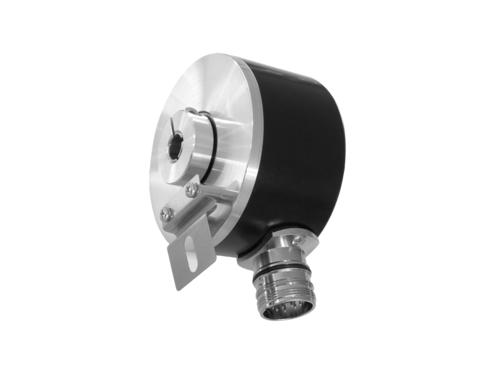

ITD 40 A 4 Y109, a state-of-the-art incremental encoder designed for precision and reliability. With a blind hollow shaft and a maximum of 2048 pulses per revolution, it is ideal for various industrial applications.
The ITD 40 A 4 Y109 is a high-precision incremental encoder from Baumer, designed to meet the demanding requirements of industrial applications. This encoder features a blind hollow shaft, ensuring versatility and ease of integration into various systems.
With advanced optical sensing technology, it provides exceptional accuracy and performance. The encoder is built with robust materials, ensuring durability in challenging environments. Additionally, its compact design allows for easy installation in tight spaces.
Datasheet:
- Voltage Supply: 5 VDC ±5 %, 8…30 VDC
- Reverse Polarity Protection: Yes
- Consumption w/o Load: ≤100 mA
- Pulses per Revolution: 200…2048
- Reference Signal: Zero pulse, width 90°
- Sensing Method: Optical
- Output Frequency: ≤120 kHz
- Output Signals: A, B, N + inverted
- Output Stages: TTL linedriver (short-circuit proof), HTL push-pull (short-circuit proof)
- Interference Immunity: EN 61000-6-2
- Emitted Interference: EN 61000-6-3
Mechanical Design:
- Size (Flange): ø80 mm
- Shaft Type: ø10…16 mm (blind hollow shaft)
- Mounting Kit: 068
- Protection EN 60529: IP 65
- Operating Speed: ≤8000 rpm, ≤5000 rpm (IP 65, >70 °C)
- Starting Torque: ≤0.01 Nm (+20 °C)
- Material: Housing: aluminium, black, powder-coated; Shaft: stainless steel
- Operating Temperature: -20…+70 °C, -20…+100 °C
- Relative Humidity: 90 % non-condensing
- Resistance: EN 60068-2-6 Vibration 10 g, 55-2000 Hz; EN 60068-2-27 Shock 100 g, 11 ms
- Connection: Connector M23 type 2, 12-pin
- Weight: Approx. 580 g
