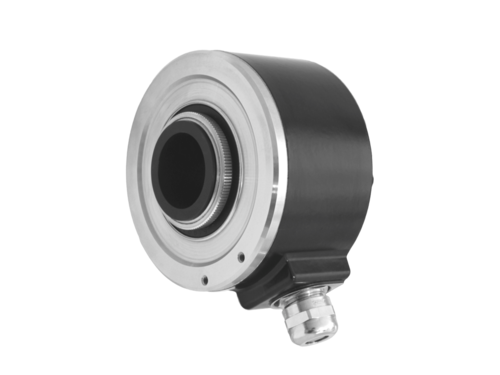

ITD 41 A 4 Y100 incremental encoder, designed for exceptional precision in industrial applications.
- Features a through hollow shaft of ø20 mm and ø25 mm.
- Offers a bolted bearing for enhanced reliability.
The ITD 41 A 4 Y100 is a high-resolution incremental encoder from Baumer, designed for precise position measurement in industrial applications.
Datasheet:
- Voltage Supply: 5 VDC ±5 %, 8…30 VDC
- Reverse Polarity Protection: Yes
- Consumption w/o Load: ≤100 mA
- Pulses per Revolution: 2000…10000
- Reference Signal: Zero pulse, width 90°
- Sensing Method: Optical
- Output Frequency: ≤300 kHz (TTL), ≤160 kHz (HTL)
- Output Signals: A, B, N + inverted
- Output Stages: TTL linedriver (short-circuit proof), HTL push-pull (short-circuit proof)
- Interference Immunity: EN 61000-6-2
- Emitted Interference: EN 61000-6-3
Mechanical Design:
- Size (Flange): ø80 mm
- Shaft Type: ø20 mm, ø25 mm (through hollow shaft)
- Mounting Kit: 059, 097
- Protection EN 60529: IP 65
- Operating Speed: ≤5000 rpm, ≤3000 rpm IP 65 (>70 °C)
- Starting Torque: ≤0.02 Nm (+20 °C)
- Material: Housing: aluminium, black, powder-coated; Shaft: stainless steel
- Operating Temperature: -20…+70 °C, -30…+100 °C, -40…+100 °C (only in combination with mounting kit 097)
- Relative Humidity: 90 % non-condensing
- Resistance: EN 60068-2-6 Vibration 10 g, 55-2000 Hz; EN 60068-2-27 Shock 30 g, 11 ms
- Connection: Cable 1 m
- Weight: Approx. 900 g
With its robust design and wide operating temperature range, the ITD 41 A 4 Y100 is ideal for a variety of industrial environments. This encoder ensures reliable performance and long-lasting durability, making it a preferred choice for engineers and technicians.
