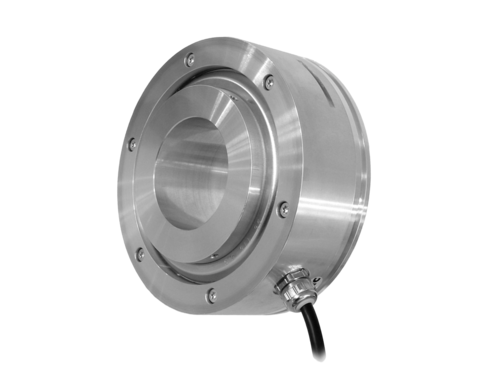

Baumer ITD 75 A 4

The Baumer ITD 75 A 4 is a high-precision incremental encoder without a reference system, designed for industrial applications where high accuracy and reliability are required. This encoder uses an optical measurement method and has a through hollow shaft that provides high resistance to vibrations and shocks.

It features an impressive operating speed of up to 30,000 rpm and is built to withstand harsh conditions with a protection rating of IP 54. Furthermore, its optical measurement method guarantees excellent accuracy and reliability, making it an ideal choice for various applications.

Datasheet

Electrical characteristics:

• Supply voltage: 5 VDC ±5 %, 8…30 VDC
• Reverse polarity protection: Yes
• No-load consumption: ≤100 mA
• Steps per rotation: 1000 … 2500
• Reference signal: Zero pulse, width 90°
• Measurement method: Optical
• Output frequency: ≤120 kHz (HTL)
• Output signals: A, B, N + inverse
• Output stages: TTL line driver (short-circuit protected), HTL push-pull (short-circuit protected)
• Immunity to interference: EN 61000-6-2
• Radiated interference: EN 61000-6-3

Mechanical design:

• Protection EN 60529: IP 54
• Operating speed: ≤30000 rpm
• Material: Body: aluminum, black, powder coated; Shaft: aluminum
• Operating temperature: -20…+70 °C
• Relative humidity: 90% non-condensing
• Resistance: EN 60068-2-6, Vibration 10 g, 55-2000 Hz; EN 60068-2-27, Impact 100 g, 11 ms
• Connection: Cable 1 m
• Weight: approximately 1500 g

Advantages:

• High accuracy: Provides accurate position measurement in steps per revolution from 1000 to 2500.
• Resistance to vibrations and shocks: High resistance to the effects of vibrations and shocks ensures reliability in difficult industrial conditions.
• Optical measurement method: Provides high reliability and measurement accuracy.
• Protection IP 54: Ensures long-lasting operation even in harsh conditions.
