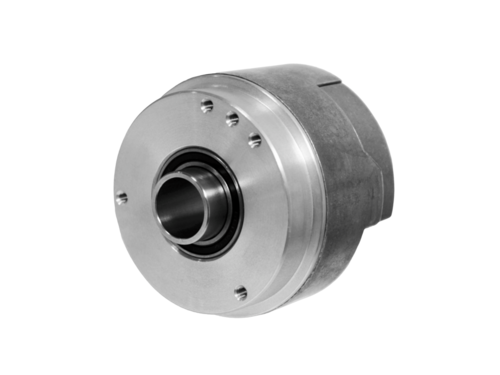

ITD21H01 is a high-quality incremental encoder designed for precision and reliability.
Featuring a through hollow shaft of Ø14 mm and a size of Ø58 mm, this encoder ensures accurate optical sensing and versatile installation options.
The ITD21H01 is a high-resolution incremental encoder from Baumer, engineered for precise position measurement in industrial applications.
Datasheet:
- Voltage Supply: 5 VDC В±5 %, 8…30 VDC
- Reverse Polarity Protection: Yes
- Consumption w/o Load: ≤100 mA
- Pulses per Revolution: 100…10000
- Reference Signal: Zero pulse, width 90°
- Sensing Method: Optical
- Output Frequency: ≤300 kHz (TTL), ≤160 kHz (HTL)
- Output Signals: A, B, N + inverted
- Output Stages: TTL linedriver (short-circuit proof), HTL push-pull (short-circuit proof)
- Interference Immunity: EN 61000-6-2
- Emitted Interference: EN 61000-6-3
Mechanical Design:
- Size (Flange): Ø58 mm
- Shaft Type: Ø14 mm (through hollow shaft)
- Protection EN 60529: IP 65
- Operating Speed: ≤6000 rpm
- Starting Torque: ≤0.015 Nm (+20 °C)
- Material: Housing: aluminium; Shaft: stainless steel
- Operating Temperature: -30…+100 °C
- Relative Humidity: 90 % non-condensing
- Resistance: EN 60068-2-6 Vibration 20 g, 60-2000 Hz; EN 60068-2-27 Shock 100 g, 6 ms
- Connection: Board connector, 8-pin
- Weight: Approx. 150 g
This encoder is ideal for demanding applications, ensuring reliability and precision in various environments.
