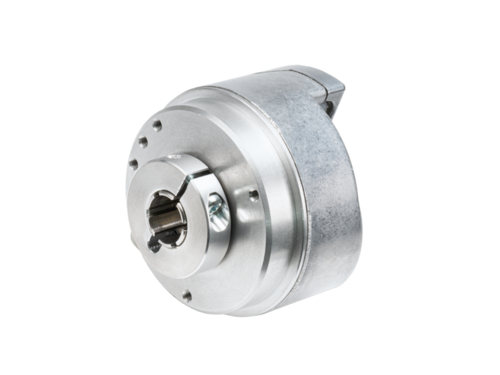

ITD22H00 Incremental Encoder, designed with a through hollow shaft diameter ranging from 10 mm to 14 mm. Perfect for industrial applications, it features robust construction and delivers exceptional signal quality.
The ITD22H00 is a high-resolution incremental encoder from Baumer, engineered for precise position measurement in industrial applications.
Datasheet:
- Voltage Supply: 5 VDC В±10 %, 8…30 VDC
- Reverse Polarity Protection: Yes
- Consumption w/o Load: ≤100 mA
- Sinewave Cycles per Revolution: 1024…2048
- Sensing Method: Optical
- Output Frequency: ≤180 kHz (-3 dB)
- Output Signals: A, B, 0
- Output Stages: SinCos 1 Vpp
- Interference Immunity: EN 61000-6-2
- Emitted Interference: EN 61000-6-3
Mechanical Design:
- Size (Flange): Ø58 mm
- Shaft Type: Ø10 mm, Ø12 mm, Ø14 mm (through hollow shaft)
- Protection EN 60529: IP 65
- Operating Speed: ≤6000 rpm
- Starting Torque: ≤0.015 Nm (+20 °C)
- Material: Housing: aluminium; Shaft: stainless steel
- Operating Temperature: -30…+100 °C
- Relative Humidity: 90 % non-condensing
- Resistance: EN 60068-2-6 Vibration 20 g, 60-2000 Hz; EN 60068-2-27 Shock 100 g, 6 ms
- Connection: Board connector, 8-pin
- Weight: Approx. 150 g
This encoder offers a wide operating temperature range and low harmonics signal quality, making it ideal for demanding environments.
