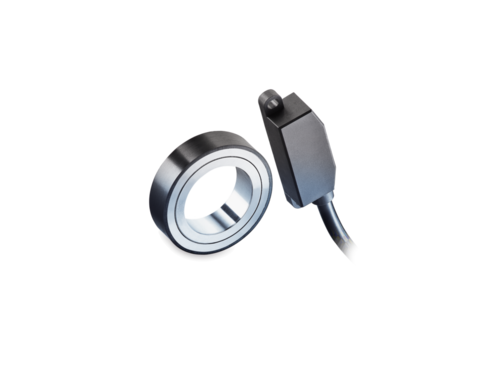

ITD49H00, a reliable magnetic ring encoder designed for precision in industrial applications. With a through hollow shaft ranging from ø8 to ø28 mm, this encoder offers high accuracy and resistance to dirt and vibrations.
The ITD49H00 is a high-resolution incremental encoder from Baumer, designed to deliver precise position measurements in industrial applications. Utilizing magnetic sensing technology, it features a through hollow shaft that ensures reliable and accurate performance across a diverse range of demanding environments.
With a maximum of 2048 pulses per revolution and a rotation speed of up to 18000 rpm, this encoder is ideal for high-speed applications. The ITD49H00 also includes robust protection against reverse polarity and short circuits, ensuring durability in tough conditions. Its compact design allows for fast and easy installation, making it a versatile choice for various applications.
Datasheet:
- Voltage Supply: 5 VDC ±5 %, 8…26 VDC
- Reverse Polarity Protection: Yes
- Short-Circuit Proof: Yes
- Consumption w/o Load: ≤50 mA
- Pulses per Revolution: 64…2048
- Interpolation: 1fold (single), 2fold, 4fold, 8fold, 16fold, 32fold
- Output Signals: A 90° B + inverted, A 90° B, N + inverted
- Output Stages: TTL linedriver (short-circuit proof), HTL push-pull (short-circuit proof)
- Output Current: ≤30 mA
- Output Frequency: ≤300 kHz (TTL), ≤160 kHz (HTL)
- System Accuracy: ±0.3°
- Interference Immunity: EN 61000-6-2
- Emitted Interference: EN 61000-6-3
Mechanical Design:
