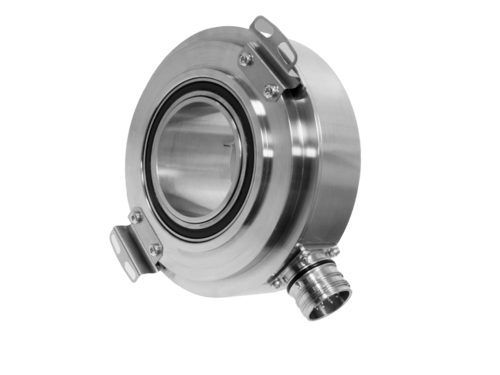

Robust ITD61H00 incremental encoder, designed for precision and versatility in industrial applications.
Featuring a through hollow shaft and optical sensing technology, this encoder is perfect for a variety of setups.
The ITD 61 H00 is a robust incremental encoder from Baumer, designed for high-precision applications in industrial environments. This encoder features a through hollow shaft, providing flexibility and ease of integration into various systems.
With a universal voltage supply ranging from 4.75 to 30 VDC and output signals available in TTL or HTL, it ensures compatibility with diverse setups. The encoder offers excellent performance with pulses per revolution reaching up to 10,000, making it ideal for demanding applications.
Datasheet:
- Voltage Supply: 8…30 VDC, 4.75…30 VDC
- Reverse Polarity Protection: Yes
- Consumption w/o Load: ≤100 mA
- Pulses per Revolution: 1024…10000
- Reference Signal: Zero pulse, width 90°
- Sensing Method: Optical
- Output Frequency:
- ≤300 kHz (at 8…30 VDC)
- ≤300 kHz (UB = 5 VDC, at 4.75…30 VDC)
- ≤160 kHz (UB > 5 VDC, at 4.75…30 VDC)
- Output Signals: A, B, N + inverted
- Output Stages: Push-pull short-circuit proof
- Interference Immunity: EN 61000-6-2
- Emitted Interference: EN 61000-6-3
- Approval: UL 508 / CSA 22.2
