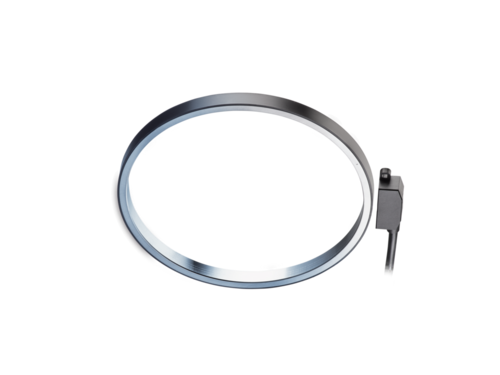

ITD89H00 – Sine signal, a cutting-edge magnetic ring encoder designed for industrial applications. With a through hollow shaft ranging from ø70 to ø140 mm, it ensures precise measurements and high reliability.
The ITD 89 H00 – Sine Signal is a high-precision incremental encoder from Baumer, specifically designed for demanding industrial applications. This encoder features a through hollow shaft and provides high-quality sine signal output, ensuring exceptional performance and reliability.
Engineered with advanced technology, it boasts 256 sinewave cycles per revolution, making it ideal for applications requiring high accuracy. Its robust design includes a bearingless structure and IP67 protection, enhancing its durability in challenging environments.
Datasheet:
- Voltage Supply: 5 VDC ±10 %
- Reverse Polarity Protection: Yes
- Short-Circuit Proof: Yes
- Consumption w/o Load: ≤50 mA
- Sinewave Cycles per Revolution: 256
- Output Signals: A+, A-, B+, B-, N+, N-
- Output Stages: SinCos 1 Vpp
- Output Frequency: ≤180 kHz (-3 dB)
- System Accuracy: ±0.1°
- Interference Immunity: EN 61000-6-2
- Emitted Interference: EN 61000-6-3
Mechanical Design:
- Shaft Type: ø70…140 mm (through hollow shaft)
- Dimensions: W x H x L – 12 x 16 x 48 mm
- Motor Shaft Tolerance: 0.5 mm axial, 0.05 mm radial
- Protection EN 60529: IP 67 (relating to sealed electronics)
- Operating Speed: ≤5000 rpm
- Material: Housing: plastic; Shaft: stainless steel
- Operating Temperature: -40…+100 °C (fixed cable)
- Resistance: EN 60068-2-6 Vibration 10 g, 55-2000 Hz; EN 60068-2-27 Shock 100 g, 11 ms
- Weight: Approx. 2200 g (at ø70 mm), 619 g (at ø140 mm)
- Connection: Cable 1 m
