Magnetic detector for rotary application
SKU:
MDFK 08T7101
0.00€
Out of stock
One click request
The advanced Magnetic Detector designed for rotary applications.
Ideal for precise detection, this sensor ensures high performance and reliability.
Manufacturer:
Baumer
Description:

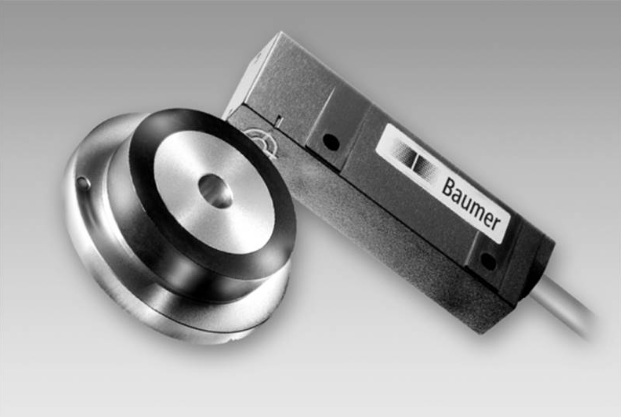

Baumer MDFK-08T7101 10128137 Magnetic Sensor
Technical:
- Type: Detection head
- Resolution up to 1024 pulses
- 6…47.8 mm (through hollow shaft)
- Range: 0.8 mm
- Power supply: 5 VDC
- Output stage: RS422
- Output signals / Interpolation: A/B + inv. / 8x
- Connection method: 2 m cable
- Dimensions (W x H x D): 45 x 8.5 x 15 mm
- Housing material: PC
- Protection class: IP67 (DIN EN 60529)
- Temperature range: -25°C to +85°C
- 2-Channel
- Complementary
This magnetic sensor is engineered for durability and precision. With an IP67 protection class, it is suitable for challenging environments. Ensure optimal functionality with its robust design and high-resolution output.
