MIR10 incremental encoder features a magnetic reading method, ensuring reliable and durable performance.
It offers short circuit and reverse polarity protection, making it ideal for various applications.

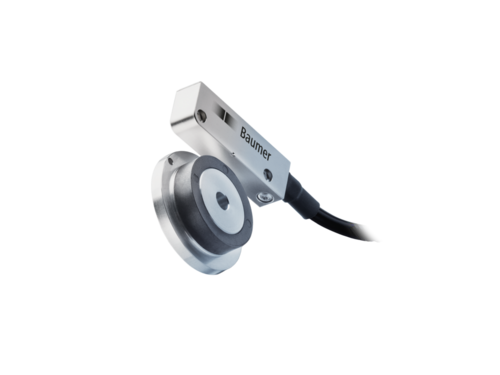

The MIR10 is a bearingless incremental encoder that uses a magnetic readout method. It consists of a sensor head and a magnetic wheel, providing contactless, wear-free reading. This makes it resistant to dirt and vibration.
With its robust design, the MIR10 can operate effectively in challenging environments, ensuring longevity and reliability. The encoder supports a wide range of supply voltages and has multiple output signals for versatile connectivity.
Datasheet:
- The number of pulses per revolution: 320 … 4096
- Interpolation: 10-fold, 20-fold, 32-fold, 64-fold
- Output signals: A+, B+, R+, A-, B-, R-
- Output circuits: HTL/push-pull, TTL/RS422
- Reference signal: Zero pulse, 90° width (zero pulse only with magnetic rotor with reference magnet)
- Output frequency: ≤40 kHz (10 times interpolation), ≤80 kHz (20 times interpolation), ≤350 kHz (32/64 times interpolation)
- System Accuracy: Typically ±0.7° (+20 °C)
- Initialization time: ≤ 50 ms after power-on
- Interference immunity: EN 61000-6-2
- Radiated interference: EN 61000-6-4
- Certification: CE, UL
- Consumption: Typical 20 mA (no load)
- Supply voltage: 5 VDC ±5 %
- Consumption: Typical 30 mA (no load)
- Recommended cable termination: On the control side, each channel pair is 120 ohms
- Shaft type: ø6…43.5 mm (through hollow shaft)
- Dimensions (sensor head): 10 x 15 x 45.5 mm
- Protection EN 60529: IP 66, IP 67
- Operating speed: ≤10000 rpm (50 and 64 poles), ≤20000 rpm (32 poles)
- Working distance: 0.1 … 0.6 mm (axial/radial)
- Material: Body: zinc alloy, coated
- Operating temperature: -40…+85 °C
- Relative humidity: EN 60068-2-78:2010, EN 60068-2-30:2005, 93% condensation allowed
- Resistance: EN 60068-2-6 Vibration 30 g, 10-2000 Hz; EN 60068-2-27 Impact 500 g, 6 ms
- Weight: Approximately 130 g
- Connection: 2 m cable, 0.3 m cable with M12 connector
Advantages:
- Contactless reading: Ensures durability and reliability.
- High resistance to dirt and vibration: Ideal for heavy duty conditions.
- Wide range of operating temperatures: Allows you to use the device in various climatic conditions.
- High accuracy and reading speed: Provides precise positioning and control.
