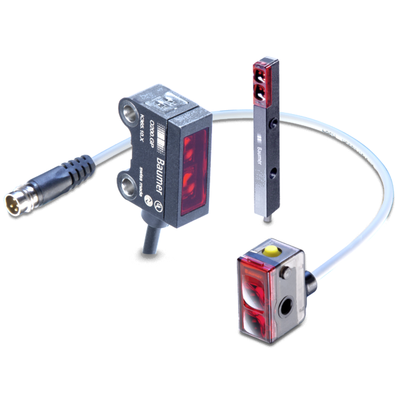

Diffuse Sensors with Background Suppression, designed for precise detection in miniature applications.
This sensor features a pulsed red laser diode and offers an impressive sensing distance of 30 to 250 mm, making it ideal for various environments.
| Baumer Article no | 11171745 |
| Type | Background suppression |
| Light source | Pulsed red laser diode |
| Sensing distance Tw | 30 … 250 mm |
| Sensing range Tb | 15 … 250 mm |
| Repeat accuracy | < 0.1 mm at laser focus |
| Power on indication | LED green |
| Light indicator | LED yellow |
| Sensing distance adjustment | qTeach |
| Laser class | 1 |
| Distance to focus | 80 mm |
| Wave length | 656 nm |
| Suppression of reciprocal influence | Yes |
| Alignment optical axis | < 2° |
| Response time / release time | < 0.25 ms |
| Voltage supply range +Vs | 11 … 30 VDC |
| Current consumption max. (no load) | 30 mA |
| Current consumption typ. | 25 mA |
| Voltage drop Vd | < 2.5 VDC |
| Output function | Light / dark operate |
| Output circuit | NPN complementary |
| Output current | < 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Width / diameter | 12.9 mm |
| Height / length | 32.3 mm |
| Depth | 23 mm |
| Type | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Cable 4 pin, 2 m |
| Protection class | IP 67 |
| Operating temperature | -10 … +60 °C |
This sensor is equipped with advanced features for reliable performance in a variety of industrial applications. With its robust design and high protection class of IP67, it ensures durability even in challenging environments. Experience enhanced sensing precision and efficiency with this cutting-edge solution.
