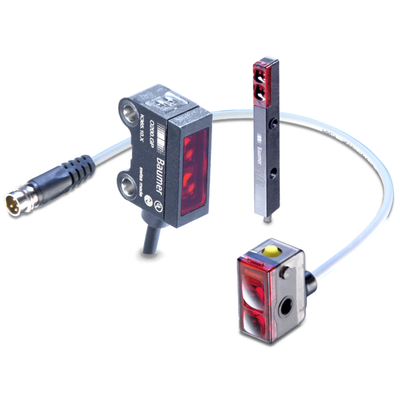

Retro-reflective sensors designed for miniature applications.
Featuring a pulsed red laser diode and a robust PNP complementary output, these sensors ensure reliable performance in various environments.
| Baumer Article no | 11172803 |
| Type | Retro-reflective sensor |
| Light source | Pulsed red laser diode |
| Actual range Sb | 5 m |
| Nominal range Sn | 6 m |
| Repeat accuracy | 0.2 mm at 500 mm |
| Polarization filter | Yes |
| Light indicator | LED yellow |
| Power on indication | LED green |
| Sensitivity adjustment | qTeach |
| Laser class | 1 |
| Distance to focus | Parallel beam |
| Wave length | 656 nm |
| Suppression of reciprocal influence | Yes |
| Alignment optical axis | < 2° |
| Response time / release time | < 0.1 ms |
| Voltage supply range +Vs | 11 … 30 VDC |
| Current consumption max. (no load) | 30 mA |
| Current consumption typ. | 25 mA |
| Voltage drop Vd | < 2.5 VDC |
| Output function | Light / dark operate |
| Output circuit | PNP complementary |
| Output current | < 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Width / diameter | 12.9 mm |
| Height / length | 32.3 mm |
| Depth | 23 mm |
| Type | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Connector M8 4 pin |
| Operating temperature | -10 … +60 °C |
| Protection class | IP 67 |
This miniature retro-reflective sensor is designed for precision and durability, making it perfect for a wide range of industrial applications. Its compact design allows for easy integration into tight spaces, while the IP67 protection class ensures reliable operation in harsh environments. Trust Baumer’s advanced technology to deliver exceptional performance and accuracy in your automation projects.
