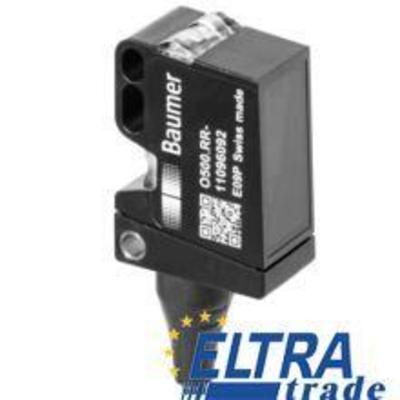

Diffuse sensor with background suppression
SKU:
O500.GI-GW1B.72CU
0.00€
Out of stock
One click request
Diffuse sensors with background suppression designed for precise detection in various environments. With a sensing distance of 60 to 550 mm, these sensors are perfect for applications requiring reliability and accuracy.
Manufacturer:
Baumer
Description:
| output circuit | push-pull |
| front (optics) | PMMA |
| protection class | IP 67 |
| suppression of reciprocal influence | yes |
| light indicator | LED yellow |
| light source | pulsed infrared diode |
| type | rectangular |
| output current | < 100 mA |
| alignment optical axis | < 1° |
| width / diameter | 18 mm |
| voltage supply range +Vs | 10 … 30 VDC |
| wave length | 860 nm |
| housing material | plastic (ASA, PMMA) |
| sensing distance Tw | 60 … 550 mm |
| operating temperature | -25 … +60 °C |
| reverse polarity protection | yes |
| type | background suppression |
| response time / release time | < 0,49 ms |
| power on indication | LED green |
| output function | light / dark operate |
| height / length | 45 mm |
| current consumption max. (no load) | 40 mA |
| current consumption typ. | 30 mA |
| voltage drop Vd | < 3 VDC |
| connection types | cable 4 pin, 2 m |
| depth | 32 mm |
| sensing distance adjustment | qTeach / external |
| manufacter SKU | O500.GI-GW1B.72CU |
| short circuit protection | yes |
| sensing range Tb | 30 … 600 mm |
This sensor is built to withstand harsh environments, featuring a robust housing and an IP67 protection class. Its advanced technology ensures minimal interference, providing reliable performance for your detection needs.
