Retro-reflective sensor
SKU:
O500.RP-PV1T.72O
0.00€
Out of stock
One click request

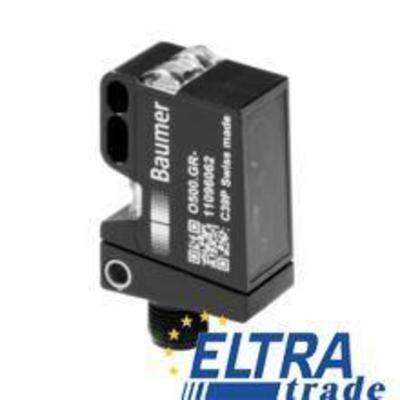

Retro-reflective sensors, model O500.RP-PV1T.72O. Designed for a range of applications, these sensors feature a pulsed PinPoint LED light source.
Manufacturer:
Baumer
Description:
| short circuit protection | yes |
| reverse polarity protection | yes |
| housing material | plastic (ASA, PMMA) |
| front (optics) | PMMA |
| light indicator | LED yellow |
| voltage supply range +Vs | 10 … 30 VDC |
| operating temperature | -25 … +60 °C |
| height / length | 45 mm |
| output current | < 100 mA |
| light source | pulsed PinPoint LED |
| depth | 32 mm |
| type | retro-reflective sensor |
| alignment optical axis | < 1° |
| output function | light / dark operate |
| type | rectangular |
| polarization filter | yes |
| sensitivity adjustment | qTeach |
| voltage drop Vd | < 3 VDC |
| response time / release time | < 0,49 ms |
| protection class | IP 67 |
| wave length | 630 nm |
| connection types | connector M12 4 pin |
| current consumption typ. | 30 mA |
| width / diameter | 18 mm |
| output circuit | PNP complementary |
| current consumption max. (no load) | 40 mA |
| nominal range Sn | 8 m |
| suppression of reciprocal influence | yes |
| actual range Sb | 7,5 m |
| power on indication | LED green |
| manufacter SKU | O500.RP-PV1T.72O |
These sensors are built to operate in various environments, ensuring reliable performance. With features like short circuit protection and a robust housing material, you can trust the O500.RP-PV1T.72O for your sensor needs.
