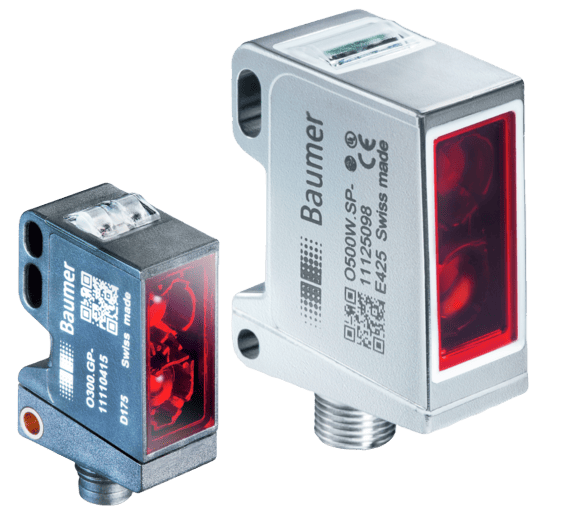

Smart Reflect Light barrier
SKU:
O500.SP-PV1T.72O/T003
0.00€
Out of stock
One click request
SmartReflect Light barriers designed for extended sensing ranges of 60 to 600 mm. These advanced light barriers utilize a pulsed PinPoint LED for reliable performance in diverse applications.
Manufacturer:
Baumer
Description:
| Baumer Article no | 11135869 |
| Type | Light barrier |
| Version | Standard object detection |
| Light source | Pulsed PinPoint LED |
| Background position Sde | 60 … 600 mm |
| Scanning range Sa | 90% … 85% Sde |
| Power on indication | LED green |
| Light indicator | LED yellow |
| Sensing distance adjustment | qTeach / 1-Step Teach-in |
| Wave length | 630 nm |
| Suppression of reciprocal influence | Yes |
| Alignment optical axis | < 1° |
| Response time / release time | < 0.49 ms |
| Voltage supply range +Vs | 10 … 30 VDC |
| Current consumption max. (no load) | 40 mA |
| Current consumption typ. | 30 mA |
| Voltage drop Vd | < 3 VDC |
| Output function | Light / dark operate |
| Output circuit | PNP complementary |
| Output current | < 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Width / diameter | 18 mm |
| Height / length | 45 mm |
| Depth | 32 mm |
| Type | Rectangular |
| Housing material | Plastic (ASA, PMMA) |
| Front (optics) | PMMA |
| Connection types | Connector M12 4 pin |
| Protection class | IP 67 |
| Operating temperature | -25 … +60 °C |
This sensor is built to withstand harsh environments with an IP67 protection class, ensuring durability. The advanced features like short-circuit and reverse polarity protection enhance its reliability in various industrial applications.
