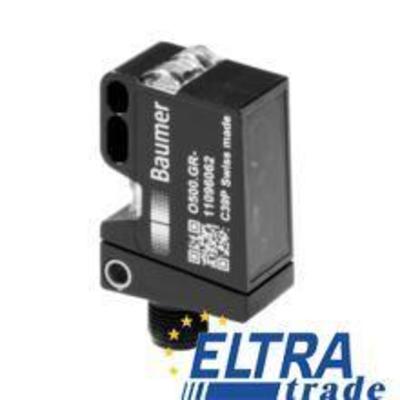

Smart Reflect Light barriers designed for precision and reliability in object detection.
With advanced pulsed PinPoint LED technology, it ensures optimal performance across various environments.
| front (optics) | PMMA |
| type | light barrier |
| manufacter SKU | O500.SP.T-GW1J.72O/B005 |
| light indicator | LED green |
| voltage supply range +Vs | 10 … 30 VDC |
| height / length | 45 mm |
| minimal signal attenuation | 10 % / 20 % / 30 % |
| operating temperature | -25 … +60 °C |
| output circuit | push-pull |
| current consumption typ. | 30 mA |
| version | transparency object detection |
| short circuit protection | yes |
| voltage drop Vd | < 3 VDC |
| scanning range Sa | 100% … 85% Sde |
| protection class | IP 67 |
| wave length | 630 nm |
| background position Sde | 60 … 1000 mm |
| light source | pulsed PinPoint LED |
| width / diameter | 18 mm |
| output indicator | LED yellow |
| output current | < 100 mA |
| suppression of reciprocal influence | yes |
| current consumption max. (no load) | 40 mA |
| output function | light / dark operate |
| sensing distance adjustment | Teach-in and IO-Link |
| reverse polarity protection | yes |
| type | rectangular |
| alignment optical axis | < 1° |
| depth | 32 mm |
| response time / release time | < 0,25 ms |
| connection types | connector M12 4 pin |
| housing material | plastic (ASA, PMMA) |
Engineered for excellence, this light barrier is ideal for a variety of industrial applications, ensuring safety and efficiency. Its robust design and high protection class IP 67 make it suitable for harsh environments, while the teach-in and IO-Link capabilities offer versatile integration options.
