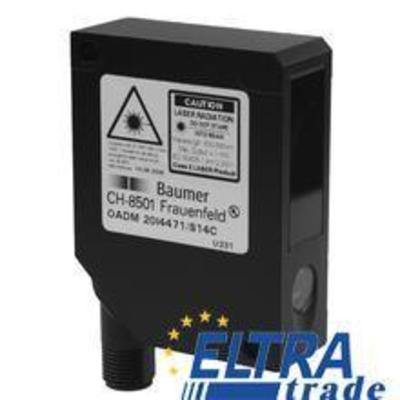

Distance sensor
SKU:
OADM 20I2441/S14C
0.00€
Out of stock
One click request
OADM 20I2441/S14C Distance Sensor, designed for precision measurement. With a measuring distance range of 30 to 70 mm, this sensor is ideal for various applications.
Manufacturer:
Baumer
Description:
| soiled lens indicator | LED red |
| beam diameter | 1 … 0,2 mm |
| current consumption max. (no load) | 100 mA |
| type | rectangular |
| output circuit | analog |
| protection class | IP 67 |
| load resistance (analog I) | < (+Vs - 6 V) / 0,02 A |
| connection types | connector M12 5 pin, rotatable |
| laser class | 2 |
| linearity error | В± 0,012 … В± 0,06 mm |
| resolution | 0,004 … 0,02 mm |
| output signal | 4 … 20 mA |
| housing material | die-cast zinc |
| power on indication | LED green |
| voltage supply range +Vs | 12 … 28 VDC |
| wave length | 650 nm |
| short circuit protection | yes |
| height / length | 65 mm |
| adjustment | Teach-in: button / external |
| light source | pulsed red laser diode |
| operating temperature | 0 … +50 °C |
| width / diameter | 20,6 mm |
| beam type | point |
| measuring distance Sd | 30 … 70 mm |
| front (optics) | glass |
| depth | 50 mm |
| Teach-in range min. | > 2 mm |
| reverse polarity protection | yes, Vs to GND |
| response time / release time | < 0,9 ms |
| manufacter SKU | OADM 20I2441/S14C |
This distance sensor is equipped with advanced features including a soiled lens indicator and a pulsed red laser diode for reliable performance. With a robust die-cast zinc housing and an IP67 protection class, it ensures durability in challenging environments.
