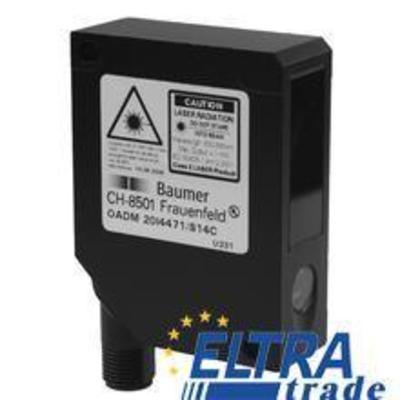

Distance sensors, designed for accurate measurements in various applications.
With a measuring distance of 30 to 70 mm, these sensors ensure reliable performance in industrial environments.
| laser class | 2 |
| short circuit protection | yes |
| load resistance (analog U) | > 100 kOhm |
| output circuit | analog |
| linearity error | ± 0,012 … ± 0,06 mm |
| type | rectangular |
| current consumption max. (no load) | 100 mA |
| height / length | 65 mm |
| front (optics) | glass |
| housing material | die-cast zinc |
| measuring distance Sd | 30 … 70 mm |
| manufacter SKU | OADM 20I6441/S14F |
| operating temperature | 0 … +50 °C |
| temperature drift | < 0,015 % Sde/K |
| voltage supply range +Vs | 12 … 28 VDC |
| protection class | IP 67 |
| alarm output | PNP |
| power on indication | LED green |
| response time / release time | < 0,9 ms |
| Teach-in range min. | > 2 mm |
| beam diameter | 1 … 0,2 mm |
| output signal | 4 … 20 mA / 0 … 10 VDC |
| light source | pulsed red laser diode |
| width / diameter | 20,6 mm |
| load resistance (analog I) | < (+Vs – 6 V) / 0,02 A |
| depth | 50 mm |
| reverse polarity protection | yes, Vs to GND |
| ambient light immunity | < 50 kLux |
| soiled lens indicator | LED red |
| wave length | 650 nm |
| connection types | connector M12 8 pin, rotatable |
| output current | < 100 mA |
| adjustment | Teach-in: button / external |
| resolution | 0,004 … 0,02 mm |
| beam type | point |
These sensors come equipped with features such as laser class 2, short circuit protection, and a robust housing made from die-cast zinc, ensuring durability and reliability in challenging environments.
With an operating temperature range of 0 to +50 °C and a measuring distance of 30 to 70 mm, they are versatile for various applications, providing consistent and accurate results.
