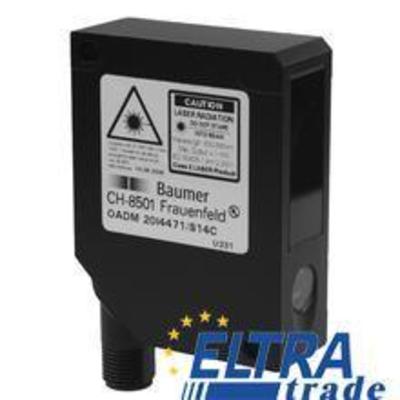

Distance sensor
SKU:
OADM 20I6572/S14F
0.00€
Out of stock
One click request
Distance Sensor designed for accurate distance measurement.
With a measurement range of 50 to 300 mm, this sensor features user-friendly teach-in adjustment options.
Manufacturer:
Baumer
Description:
| connection types | connector M12 8 pin, rotatable |
| power on indication | LED green |
| soiled lens indicator | LED red |
| short circuit protection | yes |
| reverse polarity protection | yes, Vs to GND |
| laser class | 2 |
| height / length | 65 mm |
| light source | pulsed red laser diode |
| beam width | 2,5 mm |
| wave length | 650 nm |
| ambient light immunity | < 8 kLux |
| Teach-in range min. | > 5 mm |
| output current | < 100 mA |
| load resistance (analog U) | > 100 kOhm |
| type | rectangular |
| alarm output | PNP |
| housing material | die-cast zinc |
| output signal | 4 … 20 mA / 0 … 10 VDC |
| resolution | 0,01 … 0,33 mm |
| output circuit | analog |
| width / diameter | 20,6 mm |
| measuring distance Sd | 50 … 300 mm |
| manufacter SKU | OADM 20I6572/S14F |
| depth | 50 mm |
| front (optics) | glass |
| temperature drift | < 0,03 % Sde/K |
| voltage supply range +Vs | 12 … 28 VDC |
| protection class | IP 67 |
| beam height | 4 … 12 mm |
| adjustment | Teach-in: button / external |
| linearity error | В± 0,03 … В± 1 mm |
| current consumption max. (no load) | 100 mA |
| response time / release time | < 0,9 ms |
| load resistance (analog I) | < (+Vs - 6 V) / 0,02 A |
| operating temperature | 0 … +50 °C |
| beam type | line |
This Distance Sensor is ideal for various applications, offering robust performance in challenging environments with its IP67 protection class.
Its compact design and ease of integration make it a valuable addition to any measurement system.
