Out of stock

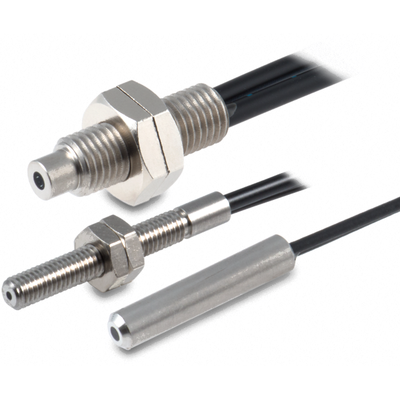

Experience the cutting-edge technology of the Fiber optic sensors – OF10 with intuitive OLED display.
This sensor features programmable input configurations and advanced remote programming for enhanced usability.
| Baumer Article no | 11224111 |
| Actual range Sb (FSE 200C1002) | 840 mm |
| Sensing distance Tw (FUE 200C1003) | 210 mm |
| Light source | Pulsed red LED |
| Light indicator | OLED display |
| Output indicator | LED red |
| Adjustment | Teach-in: button / external |
| Wave length | 660 nm |
| Suppression of reciprocal influence | Yes |
| Response time / release time | 0.05 ms (Ultra High Speed Mode)0.125 ms (High Speed Mode)0.25 ms (Standard Mode)1 ms (High Resolution Mode)4 ms (Long Range Mode)16 ms (Ultra Long Range Mode) |
| Voltage supply range +Vs | 8 … 30 VDC |
| Current consumption max. (no load) | 50 mA |
| Current consumption typ. | 30 mA |
| Voltage drop Vd | < 2 VDC |
| Output function | Light / dark operate switchable |
| On / off delay | 0.1 … 9999 ms |
| Min. output pulse length | 0.1 … 9999 ms |
| Output circuit | PNP |
| Output current | < 150 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Width / diameter | 10 mm |
| Height / length | 27.8 mm |
| Depth | 93.1 mm |
| Type | Rectangular |
| Housing material | Polycarbonate |
| Connection types | Connector M8 4 pin |
| Operating temperature | 5 … +55 °C |
| Protection class | IP 50 |
This sensor is designed for versatile applications and ensures reliable performance with its advanced features. It is suitable for various industrial settings, providing precision and efficiency. Upgrade your sensing technology with the Fiber optic sensors – OF10 for optimal results.
