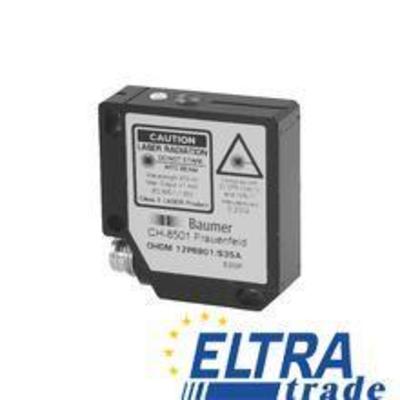

Diffuse sensors with background suppression are designed for optimal performance in various conditions. Featuring a pulsed red laser diode, these sensors ensure precise detection within a sensing distance of 17 to 120 mm.
These sensors are equipped with advanced features including a release time of less than 2.7 ms and a response time of 1 ms, making them ideal for fast-paced environments. The sensing distance can be easily adjusted using the Teach-in method. With a robust IP67 protection class and a temperature operating range of 0 to +50 °C, they are built to withstand challenging conditions.
| release time | < 2,7 ms |
| response time | < 1 ms |
| sensing distance adjustment | Teach-in |
| voltage drop Vd | < 2,8 VDC |
| sensing distance Tw | 17 … 120 mm |
| width / diameter | 12,4 mm |
| light source | pulsed red laser diode |
| type | background suppression |
| protection class | IP 67 |
| wave length | 675 nm |
| reverse polarity protection | yes, Vs to GND |
| connection types | connector M8 4 pin |
| laser class | 2 |
| power on indication | LED green |
| housing material | die-cast zinc |
| manufacter SKU | OHDM 12P6901/S35A |
| sensing range Tb (at Tw min.) | 16 … 17 mm |
| height / length | 37 mm |
| beam diameter | 0,9 … 0,5 mm |
| output circuit | PNP |
| depth | 34,5 mm |
| output current | < 100 mA |
| short circuit protection | yes |
| type | rectangular |
| output function | light / dark operate |
| current consumption max. (no load) | 80 mA |
| light indicator | LED red |
| sensing range Tb (at Tw max.) | 16 … 120 mm |
| current consumption typ. | 40 mA |
| front (optics) | glass |
| voltage supply range +Vs | 12 … 28 VDC |
