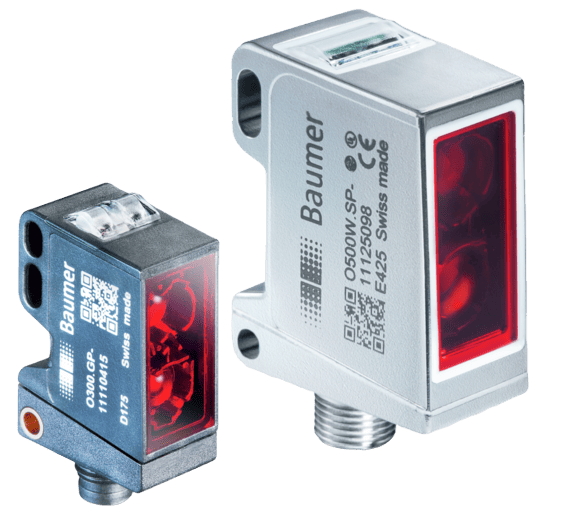

Performance sensor
SKU:
OM30-L0350.HV.YIN
0.00€
Out of stock
One click request
Performance sensor, art. 11231079, designed for precise measurements on varying materials. It features high immunity to ambient light, ensuring reliable performance in diverse conditions.
Manufacturer:
Baumer
Description:
| Baumer Article no | 11231079 |
| Type | Distance measuring |
| Measuring distance Sd | 50 … 350 mm |
| Measuring range Mr | 300 mm |
| Adjustment | Teach-in: button / IO-Link |
| Power on indication | LED green |
| Output indicator | LED yellow |
| Repeat accuracy | 2 … 30 µm |
| Linearity error | ± 0.1 % Mr , 50 … 200 mm± 0.15 % Mr , 50 … 350 mm |
| Beam type | Line |
| Temperature drift | 0,05 % Sde/K |
| Light source | Pulsed red laser diode |
| Wave length | 660 nm |
| Laser class | 2 |
| Maximum pulse power | 2 mW |
| Pulse duration | 0.001 … 1.2 ms |
| Pulse period | 0.2 … 3.4 ms |
| Response delay | 0.4 ms |
| Measuring frequency | 5000 Hz |
| Voltage supply range +Vs | 12 … 28 VDC |
| Current consumption max. (no load) | 50 mA |
| Output circuit | Analog and digital |
| Output signal | 4 … 20 mA / 2 … 10 mA |
| Load resistance | < (+Vs – 9 V) / 0.02 A |
| Output current | < 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes, Vs to GND |
| Interface | IO-Link V1.1 |
| IO-Link port type | Class A |
| Baud rate | 230,4 kBaud (COM 3) |
| Cycle time | ≥ 1 ms |
| Process data length | 48 Bit |
| Process data structure | Smart Sensor Profile – DMS PDI48.INT32_INT8Bit 0 = SSC1 (distance)Bit 2 = qualityBit 3 = alarmBit 8-15 = scale factorBit 16-47 = 32 Bit measurement |
| Width / diameter | 13.6 mm |
| Height / length | 49 mm |
| Depth | 40.3 mm |
| Type | Rectangular, front view |
| Housing material | Die-cast zinc |
| Front (optics) | Glass |
| Connection types | Connector M8 4 pin |
| Weight | 67 g |
| Ambient light immunity | < 100 kLux |
| Protection class | IP 67 |
| Operating temperature | -10 … +50 °C |
| Storage temperature | -20 … +60 °C |
| Vibration (sinusoidal) | IEC 60068-2-6:20081 mm p-p at f = 10 – 55 Hz, duration 5 min per axis30 min endurance at f = 55 Hz per axis |
| Shock (semi-sinusoidal) | IEC 60068-2-27:200930 g / 11 ms, 6 jolts per axis and direction |
This sensor is built to withstand harsh environmental conditions and offers exceptional durability. Its compact design allows for easy integration into various applications, making it a versatile choice for distance measurement needs.
