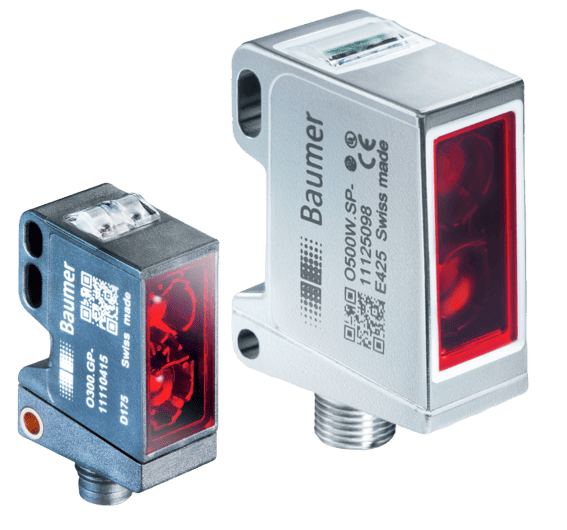

OM30-L0350.HV.YUN Performance sensor, designed for precision in distance measurement.
This sensor features automatic adjustment of exposure time and high immunity to ambient light, ensuring accurate readings in various conditions.
| Baumer Article no | 11232075 |
| Type | Distance measuring |
| Measuring distance Sd | 50 … 350 mm |
| Measuring range Mr | 300 mm |
| Adjustment | Teach-in: button / IO-Link |
| Power on indication | LED green |
| Output indicator | LED yellow |
| Repeat accuracy | 2 … 30 µm |
| Linearity error | В± 0.1 % Mr , 50 … 200 mmВ± 0.15 % Mr , 50 … 350 mm |
| Beam type | Line |
| Temperature drift | 0,05 % Sde/K |
| Light source | Pulsed red laser diode |
| Wave length | 660 nm |
| Laser class | 2 |
| Maximum pulse power | 2 mW |
| Pulse duration | 0.001 … 1.2 ms |
| Pulse period | 0.2 … 3.4 ms |
| Response delay | 0.4 ms |
| Measuring frequency | 5000 Hz |
| Voltage supply range +Vs | 12 … 28 VDC |
| Current consumption max. (no load) | 50 mA |
| Output circuit | Analog and digital |
| Output signal | 0 … 10 VDC / 0 … 5 VDC |
| Load resistance | > 100 kOhm |
| Output current | < 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes, Vs to GND |
| Interface | IO-Link V1.1 |
| IO-Link port type | Class A |
| Baud rate | 230,4 kBaud (COM 3) |
| Cycle time | ≤ 1 ms |
| Process data length | 48 Bit |
| Process data structure | Smart Sensor Profile – DMS PDI48.INT32_INT8Bit 0 = SSC1 (distance)Bit 2 = qualityBit 3 = alarmBit 8-15 = scale factorBit 16-47 = 32 Bit measurement |
| Width / diameter | 13.6 mm |
| Height / length | 49 mm |
| Depth | 40.3 mm |
| Type | Rectangular, front view |
| Housing material | Die-cast zinc |
| Front (optics) | Glass |
| Connection types | Connector M8 4 pin |
| Weight | 67 g |
| Ambient light immunity | < 100 kLux |
| Protection class | IP 67 |
| Operating temperature | -10 … +50 °C |
| Storage temperature | -20 … +60 °C |
| Vibration (sinusoidal) | IEC 60068-2-6:20081 mm p-p at f = 10 – 55 Hz, duration 5 min per axis30 min endurance at f = 55 Hz per axis |
| Shock (semi-sinusoidal) | IEC 60068-2-27:200930 g / 11 ms, 6 jolts per axis and direction |
The Performance sensor is engineered for exceptional durability and precision, making it ideal for various industrial applications. With features like adjustable filters and robust measurement capabilities on structured surfaces, it stands out in its category. This technology ensures reliable performance even in challenging environments.
