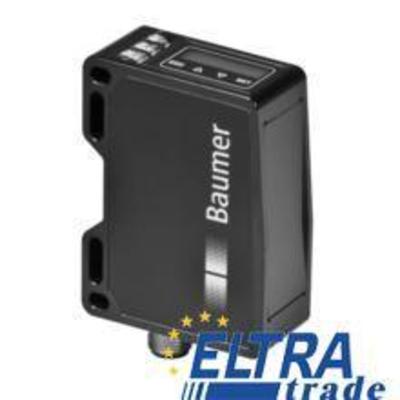

Edge sensors designed for measuring edges, centers, widths, and gaps. Equipped with advanced features like PosCon 3D, these sensors ensure accurate measurements within a range of 75 to 125 mm.
With analog and RS 485 output circuits, they are perfect for various applications.
| optical peak power max. | 3 mW |
| power on indication | LED green |
| manufacter SKU | OXE7.E25T-LB3E.SIMD.7AI short |
| output circuit | analog and RS 485 |
| type | measuring mode: edges, center, width, gap |
| output indicator | LED yellow / LED red |
| output signal | 4 … 20 mA / 0 … 10 VDC |
| depth | 55 mm |
| front (optics) | glass |
| wave length | 656 nm |
| light source | pulsed red laser diode |
| connection types | connector M12 8 pin |
| measuring range (distance) | 150 … 250 mm |
| current consumption max. (no load) | 150 mA |
| voltage supply range +Vs | 15 … 28 VDC |
| output current | < 100 mA |
| height / length | 74 mm |
| measuring range (width) | 75 … 125 mm |
| housing material | aluminum |
| width / diameter | 26 mm |
| output function | Out 1 / Alarm |
| type | rectangular, front view |
| switching output | push-pull |
| laser class | 1 |
| version | PosCon 3D |
| adjustment | Touch Display, RS485 |
| reverse polarity protection | yes, Vs to GND |
| baud rate | 115200, adjustable |
| short circuit protection | yes |
| weight | 130 g |
This sensor features a robust build with an aluminum housing, ensuring durability in various environments. Additionally, the Edge sensors provide reliable performance with low current consumption and comprehensive protection features, making them ideal for industrial applications.
