Discover the innovative Incremental Encoders from Baumer, featuring a TTL output driver designed for cable lengths of up to 550 m. Perfect for electronic speed monitoring and equipped with a EURO flange B10 and solid shaft of ø11 mm, these encoders ensure precision in demanding industrial applications.

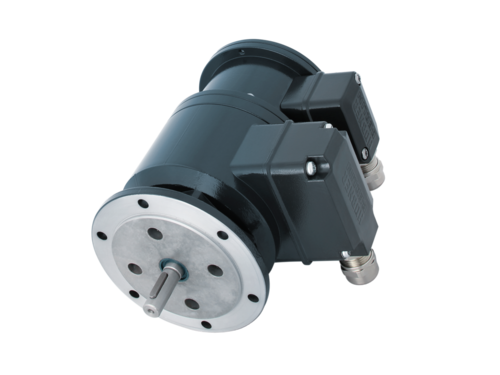

The POG 10 + ESL 90 is a robust incremental encoder combined with an electronic speed switch from Baumer, tailored for high-precision industrial applications. With a solid shaft and a EURO flange B10, this encoder and speed switch combination is suitable for demanding environments, providing reliable and accurate position measurements along with effective speed monitoring and circuit breaker functionality.
This encoder is designed for versatility, supporting a voltage supply range of 9…30 VDC and offering high output frequencies for enhanced performance. It is built to withstand harsh conditions with IP 66 protection, making it ideal for various industrial settings.
Datasheet:
Encoder:
- Voltage Supply: 9…30 VDC, 5 VDC ±5 %
- Consumption w/o Load: ≤100 mA
- Pulses per Revolution: 300…5000
- Phase Shift: 90° ±20°
- Duty Cycle: 40…60 %
- Reference Signal: Zero pulse, width 90°
- Sensing Method: Optical
- Output Frequency: ≤120 kHz, ≤300 kHz (on request)
- Output Signals: K1, K2, K0 + inverted
- Output Stages: HTL-P (power linedriver), TTL/RS422
