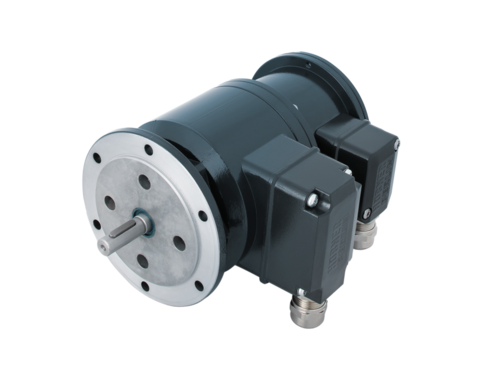

POG 10 + ESL 93 Incremental Encoder, designed for high precision in industrial applications. Featuring a TTL output driver and a robust EURO flange B10, this encoder provides reliable performance even in challenging environments.
Baumer POG 10 + ESL 93 is a combined incremental encoder with an optical measurement method and an electronic speed monitor, designed for accurate position determination and speed control in industrial applications.
This encoder offers exceptional accuracy with steps per revolution ranging from 300 to 5000, ensuring precise measurements. Additionally, it features a solid shaft design and IP 66 protection, making it suitable for harsh conditions. With its ability to monitor speed efficiently, the POG 10 + ESL 93 is an ideal choice for various industrial uses.
Datasheet:
Technical characteristics of the encoder
- Supply voltage: 9…30 VDC; 5 VDC ±5 %
- No-load consumption: ≤100 mA
- Steps per rotation: 300 … 5000
- Phase shift: 90° ±20°
- Effective duration: 40…60 %
- Reference signal: Zero pulse, width 90°
- Output frequency: ≤120 kHz, ≤300 kHz (on request)
- Output signals: K1, K2, K0 + inverse
- Output stages: HTL-P (power line driver), TTL/RS422
- Measurement method: Optical
- System accuracy: ±0.3° (-40…+85 °C), ±0.25° (+20 °C)
- Immunity to interference: EN 61000-6-2
- Radiated interference: EN 61000-6-3
