Tachogenerator. Ideal for industrial applications, these devices ensure optimal performance and durability.

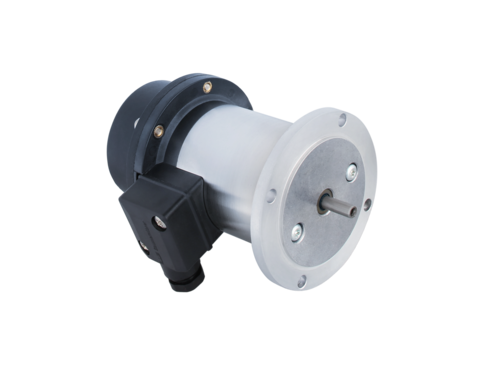

The TDP 0,09 is a high-precision tachogenerator from Baumer, designed for robust industrial applications. This tachogenerator features a solid shaft with a EURO flange B10, providing high resistance to shock and vibrations.
Engineered for excellence, it offers an open-circuit voltage ranging from 10 to 60 mV per RPM, making it suitable for various speed measurement tasks.
Datasheet:
- Reversal Tolerance: ≤0.1 %
- Linearity Tolerance: ≤0.15 %
- Temperature Coefficient: ± 0.05 %/K (open-circuit)
- Isolation Class: B
- Calibration Tolerance: ±3 %
- Climatic Test: Humid heat, constant (IEC 60068-2-3, Ca)
- Performance: 1.2 W (speed ≥3000 rpm)
- Armature-Circuit Time Constant: <25 µs
- Open-Circuit Voltage: 10…60 mV per rpm
- Interference Immunity: EN 61000-6-2
- Emitted Interference: EN 61000-6-3
- Approval: CE
Technical Data – Mechanical Design
- Size (Flange): ø85 mm
- Shaft Type: ø6 mm solid shaft
- Protection EN 60529: IP 56
- Operating Speed: ≤10000 rpm
- Torque: 1.5 Ncm
- Rotor Moment of Inertia: 0.25 kgcm²
- Admitted Shaft Load: ≤40 N axial, ≤60 N radial
- Material: Housing: stainless steel / plastic; Shaft: stainless steel
- Operating Temperature: -30…+130 °C
- Resistance: IEC 60068-2-6 Vibration 10 g, 10-2000 Hz; IEC 60068-2-27 Shock 300 g, 1 ms
- Weight: Approx. 1.1 kg
- Connection: Terminal box
