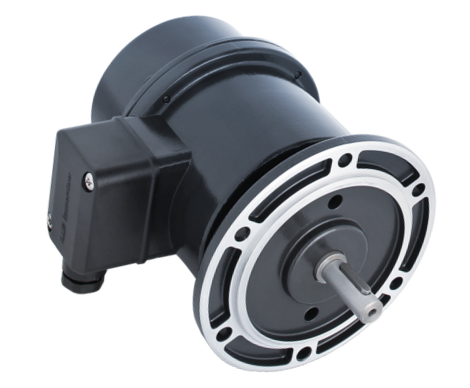

TDP0.2 LT-4 B10 55 tachogenerator, designed for optimal performance.
It features a robust die-cast aluminum housing and stainless steel shaft, ensuring durability and reliability.
The TDP0.2 LT-4 B10 55 is equipped with a solid shaft with a diameter of 11 mm and a EURO B10 flange. It has an open voltage of 60 mV per revolution, which ensures high measurement accuracy.
This tachogenerator boasts a rotor moment of inertia of 1.1 kgcm², making it suitable for various applications. It operates seamlessly in temperatures ranging from -30 to +130 °C, providing versatility and durability in challenging environments.
Datasheet:
- Open voltage: 60 mV per revolution
- Reverse tolerance: ≤0.1%
- Linear tolerance: ≤0.15%
- Temperature coefficient: ±0.05%/K (open circuit)
- Insulation class: B
- Calibration tolerance: ±1%
- Power consumption: 12 W (at a speed of ≥3000 rpm)
- Armature time constant: <75 µs
- Maximum rotation speed: ≤10000 rpm
Advantages:
- High accuracy: Due to low reverse and linear tolerance.
- Durability: Specially adapted brushes and silver track ensure a long service life.
- Reliability: High IP 55 protection level and resistance to vibrations and shock.
- Wide speed range: Suitable for a variety of applications thanks to the wide range of adjustable speeds.
- Easy to install: The EURO B10 flange and 11 mm diameter solid shaft ensure easy installation.
