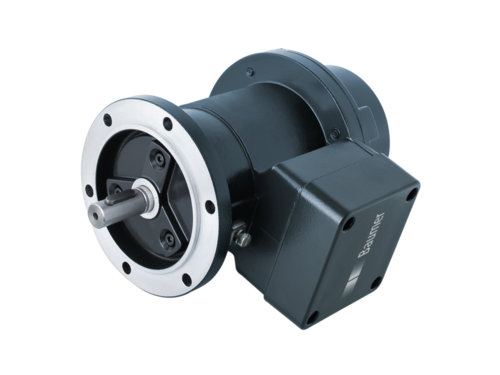

Baumer TG 74 d Tachogenerator, engineered for precision in industrial applications. This ATEX-approved device ensures safety and reliability in hazardous environments.
The Baumer TG 74 d is a heavy-duty tachogenerator designed for industrial applications where high accuracy and reliability are required. Meets ATEX II 2 G Ex db eb IIC T6 Gb explosion protection standards, making it suitable for use in extremely hazardous environments.
With its advanced engineering, this tachogenerator offers low response times and exceptional durability. It is equipped with a solid shaft and EURO flange B10, enhancing its compatibility with various setups.
Datasheet
Electrical characteristics:
- Direction change accuracy: ≤0.1%
- Linear tolerance: ≤0.15 %
- Temperature coefficient: ± 0.06 %/K (open circuit)
- Insulation class: B
- Calibration tolerance: ±5%
- Climatic test: Damp heat, constant (IEC 60068-2-3, Ca)
- Output voltage: 20…150 mV per rpm
- Immunity to interference: EN 61000-6-2
- Radiated interference: EN 61000-6-3
- Power: 12 W (speed ≥5000 rpm)
- Armature circuit time constant: <150 µs
Mechanical design:
- Size (flange): ø115 mm
- Shaft type: ø14 mm solid shaft
- Flange: EURO flange B10
- Protection EN 60529: IP 54 (T6)
- Traction torque: 1.5 Ncm
- Moment of inertia of the rotor: 1.15 kgcm²
- Permissible load on the shaft: ≤60 N axial, ≤80 N radial
- Material: Cast aluminum body, stainless steel shaft
- Operating temperature: -20…+55 °C
- Vibration resistance: IEC 60068-2-6, Vibration 10 g, 10-2000 Hz
- Impact resistance: IEC 60068-2-27, Impact 300 g, 6 ms
- Corrosion protection: IEC 60068-2-52, Heavy mist for ambient conditions C4 according to ISO 12944-2
- Explosion protection: II 2 G Ex db eb IIC T6 Gb (gas)
- Weight: approximately 3.8 kg
- Connection: Rented terminal box
Advantages:
- High accuracy: Provides high accuracy of speed and position measurement.
- Resistance to vibrations and shocks: Reliability in difficult industrial environments thanks to high resistance to vibrations and shocks.
- High signal quality: Thanks to the patented LongLife technology.
- Rotation direction detection: Rotation direction detection option is available.
- Explosion protection: Meets ATEX standards for use in gaseous environments.
