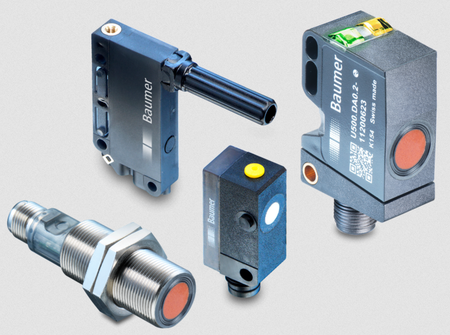

Ultrasonic Sensor, designed for precise distance measurement from 20 to 1000 mm. Ideal for various industrial applications, it features IO-Link and push-pull output for versatile integration.
| Baumer Article no | 11200644 |
| Scanning range Sd | 20 … 1000 mm |
| Scanning range far limit Sde | 20 … 1000 mm |
| Version | IO-Link |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 0.5 mm |
| Temperature drift | < 2 % Sde |
| Power-up drift | Compensated after 15 min. |
| Response time ton | < 40 ms |
| Release time toff | < 40 ms |
| Sonic frequency | 200 kHz |
| Adjustment | qTeach, line-Teach, IO-Link |
| Light indicator | LED yellow |
| Power on indication | LED green |
| Alignment measuring axis | < 2° |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption typ. | 35 mA |
| Output circuit | Push-pull |
| Output current | < 100 mA |
| Voltage drop Vd | < 3.5 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Interface | IO-Link V1.1 |
| Baud rate | 38,4 kBaud (COM 2) |
| Cycle time | 12 ms |
| Process data length | 48 Bit |
| Process data structure | Bit 0 = SSC1 (distance)Bit 1 = SSC2 (distance)Bit 2 = qualityBit 3 = alarmBit 5 = SSC4 (counter)Bit 8-15 = scale factorBit 16-47 = 32 Bit measurement |
| IO-Link port type | Class A |
| Additional data | DistanceExcess gainOperating cyclesOperating hoursBoot cyclesOperating voltageDevice temperatureHistograms |
| Adjustable parameters | Time filtersLED status indicatorsOutput logicOutput circuitCounterBeam formingFunction of pin 5Deactivate the sensor elementFind Me function |
| Type | Cylindrical threaded |
| Housing material | Stainless steel (V2A) / TR90 |
| Coating active face | PEEK |
| Width / diameter | 18 mm |
| Height / length | 64 mm |
| Connection types | Connector M12 5 pin |
| Operating temperature | -25 … +65 °C |
| Storage temperature | -40 … +75 °C |
| Protection class | IP 69 |
| Protection class (connection) | IP 67 |
This Ultrasonic Sensor is engineered for durability and reliability in harsh environments. With its stainless steel housing and robust design, it ensures long-lasting performance even under challenging conditions. Experience enhanced measurement accuracy and versatility with advanced features tailored for industrial automation.
