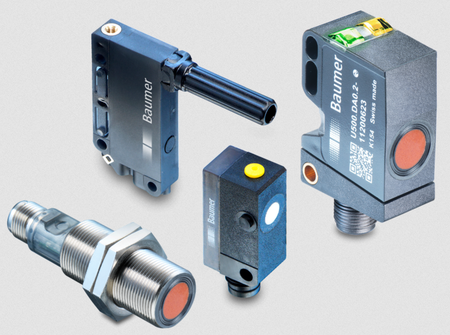

Ultrasonic 2 point proximity switch designed for precision detection within a range of 20 to 1000 mm. This robust sensor features push-pull output and supports advanced technologies such as qTeach and IO-Link.
| Baumer Article no | 11200645 |
| Special type | 2 point proximity switch |
| Scanning range Sd | 20 … 1000 mm |
| Scanning range far limit Sde | 20 … 1000 mm |
| Version | IO-Link dual channel |
| Hysteresis typ. | 4 % Sde |
| Repeat accuracy | 0.5 mm |
| Temperature drift | < 2 % Sde |
| Power-up drift | Compensated after 15 min. |
| Response time ton | < 40 ms |
| Release time toff | < 40 ms |
| Sonic frequency | 200 kHz |
| Adjustment | qTeach, line-Teach, IO-Link |
| Output indicator | Yellow LED / red LED |
| Power on indication | LED green |
| Alignment measuring axis | < 2° |
| Voltage supply range +Vs | 12 … 30 VDC |
| Current consumption typ. | 35 mA |
| Output circuit | Push-pull |
| Output current | < 100 mA |
| Voltage drop Vd | < 3.5 VDC |
| Residual ripple | < 10 % Vs |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Interface | IO-Link V1.1 |
| Baud rate | 38,4 kBaud (COM 2) |
| Cycle time | 12 ms |
| Process data length | 48 Bit |
| Process data structure | Bit 0 = SSC1 (distance)Bit 1 = SSC2 (distance)Bit 2 = qualityBit 3 = alarmBit 5 = SSC4 (counter)Bit 8-15 = scale factorBit 16-47 = 32 Bit measurement |
| IO-Link port type | Class A |
| Additional data | DistanceExcess gainOperating cyclesOperating hoursBoot cyclesOperating voltageDevice temperatureHistograms |
| Adjustable parameters | Time filtersLED status indicatorsOutput logicOutput circuitCounterBeam formingFunction of pin 5Deactivate the sensor elementFind Me function |
| Type | Cylindrical threaded |
| Housing material | Stainless steel (V2A) / TR90 |
| Coating active face | PEEK |
| Width / diameter | 18 mm |
| Height / length | 64 mm |
| Connection types | Connector M12 5 pin |
| Operating temperature | -25 … +65 °C |
| Storage temperature | -40 … +75 °C |
| Protection class | IP 69 |
| Protection class (connection) | IP 67 |
This sensor is designed for environments that require reliable performance and high durability. With its stainless steel housing and IP 69 protection class, it is suitable for harsh industrial applications. The Ultrasonic 2 point proximity switch combines advanced technology and robust design to ensure effective operation in various conditions.
