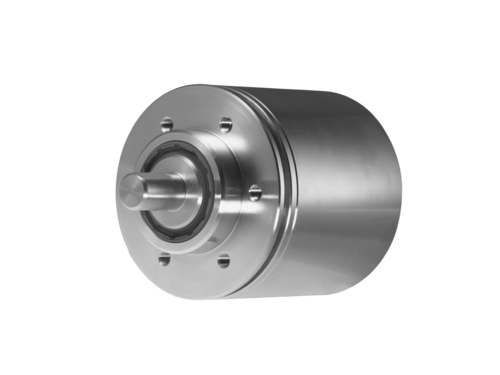

Baumer X 700 – SSI Multiturn

The Baumer X 700 – SSI Multiturn is a high-precision multi-point absolute encoder designed for industrial applications where high accuracy and reliability are required. This encoder uses the SSI (Synchronous Serial Interface) interface for fast and reliable data transmission.

Datasheet

Electrical Specifications:

• Supply voltage: 10…30 VDC, 5 VDC ±10%.
• Reverse polarity protection: Yes
• Consumption without load: ≤50 mA (24 VDC)
• Initialization time: typically 20 ms after switching on
• Interface: SSI
• Function: Multi-point rotation (Multiturn)
• Steps per rotation: 16384 / 14 bits
• Number of revolutions: 4096 / 12 bits
• Absolute accuracy: ±0.025°
• Measurement method: Optical
• Code: Gray or binary
• Code sequence: CW/CCW programmable
• Input signals: SSI clock, control signals UP/DOWN inv. and zero
• Output stages: SSI data: RS422 line driver, diagnostic outputs push-pull
• Resistance to interference: EN 61000-6-2
• Radiated interference: EN 61000-6-4
• Diagnostic function: Self-diagnosis, multi-point detection

Mechanical design:

• Size (flange): ø70 mm
• Shaft type: ø10 mm solid shaft (clamping flange)
• Flange: Clamping flange
• Protection according to EN 60529: IP 67
• Operating speed: ≤6000 rpm (mechanical and electrical)
• Initial acceleration: ≤1000 U/s²
• Starting torque: ≤0.4 Nm (+25 °C)
• Permissible shaft load: ≤60 N axial, ≤50 N radial
• Material: Housing: stainless steel, flange: stainless steel
• Operating temperature: -20…+70 °C
• Relative humidity: 95 % without condensation
• Vibration resistance: EN 60068-2-6, Vibration ±0.75 mm – 10-58 Hz, 10 g – 58-2000 Hz
• Impact resistance: EN 60068-2-27, Impact 200 g, 6 ms
• Explosion protection: Ex II 2G Ex d IIC T6, Ex II 2D
• Connection: Cable
• Weight: approx. 1300 g

Advantages:

• High accuracy: Provides accurate position measurement in increments of up to 16384 (14 bits) per revolution.
• SSI interface: Ensures fast and reliable data transfer.
• Multi-point rotation: Supports up to 4096 rotations (12 bits).
• Vibration and shock resistance: Highly reliable in harsh industrial environments thanks to its resistance to vibration and shock.
• High signal quality: Thanks to the optical measurement method.
• Interference protection: Complies with EN 61000-6-2 and EN 61000-6-4 standards.
• Programmable parameters: Flexibility in setting operating modes, scaling, and monitoring.
