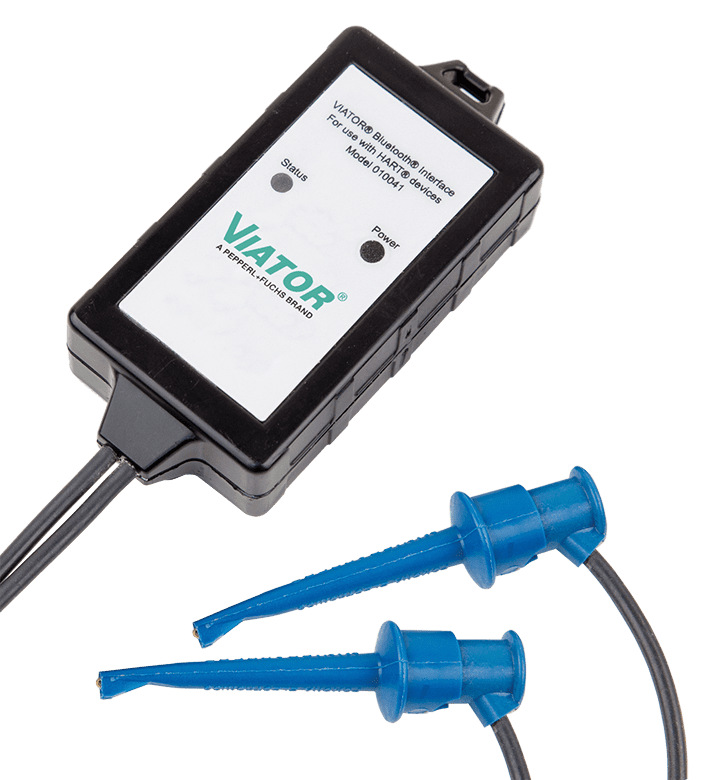

The Viator Bluetooth HART Interface facilitates wireless communication between a PC host and HART field devices, complying with industry standards for reliable performance. This device is designed for use in hazardous environments, boasting ATEX and IECEx approvals along with UL listing for North America.
The Viator Bluetooth HART Interface is a cutting-edge solution designed for seamless wireless communication within industrial environments, particularly those involving hazardous materials. This device is registered with the HART Communication Foundation, ensuring compatibility with a wide range of HART field devices, enabling engineers and technicians to efficiently monitor and configure their equipment remotely.
With its powerful Bluetooth technology, the interface offers a remarkable open-air range of up to 100 meters, allowing for extensive operational flexibility. The adaptive frequency hopping feature significantly minimizes radio-frequency interference, ensuring stable and reliable data transmission. The device is compatible with various Windows operating systems, including 32- and 64-bit versions, and supports HARTCommDTM software for integration with FDT Frame applications, making it an essential tool for professionals in industries such as oil and gas, chemical processing, and manufacturing.
| Transmitter frequency | 2402 … 2480 MHz (Bluetooth) |
| EU-Type Examination Certificate | CML 16 ATEX 2379 |
| Operating duration | approx. 20 h (continuous operation) |
| IC approval | ICES-003 , IC ID: 6514A-RN413 |
| Detection range | 100 m in air |
| Hardware requirements | any PC, PDA, laptop, or other computer with Bluetooth capability |
| Operating temperature | -20 … 50 °C (-4 … 122 °F) |
| Degree of protection | IP20 |
| Physical | Bluetooth v2.0, Class 1, EDR |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
| Material | Polycarbonate |
| Connection | HART I/O Interface cable , 20 AWG fine-strand , termination test clips |
| Operating system | Windows , Windows Mobile or any OS that supports Bluetooth COM port |
| Storage temperature | -20 … 60 °C (-4 … 140 °F) |
| Signal | HART-compliant trapezoidal wave at 1200/2200 Hz |
| Relative humidity | 0 … 95% , non-condensing |
| FCC approval | FCC Part 15 B , FCC ID: T9J-RN41-3 |
| Antenna | integrated omnidirectional |
| Cable length | 0.5 m |
| UL approval | E106378 |
| Dimensions | 88 mm x 42 mm x 19 mm |
| Transmitter radiated power | 18 dBm |
| Battery type | 3 x AAA-size batteries, 1.5 V DC, alkaline cells, type LR03, Energizer EN92 |
