Out of stock

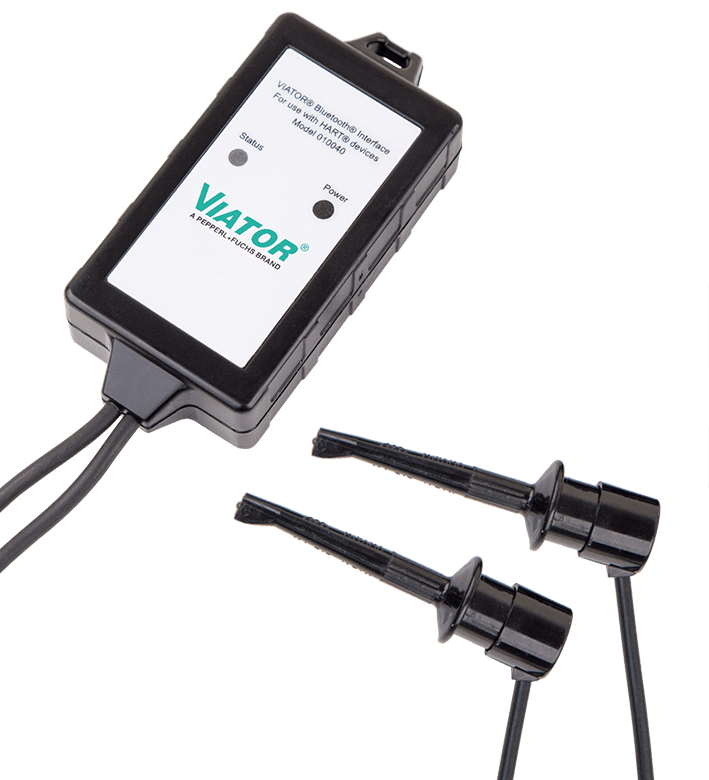

The Viator Bluetooth HART Interface facilitates wireless communication between a PC host and any HART field device, ensuring seamless data transfer in industrial environments.
The Viator Bluetooth HART Interface is a sophisticated solution designed to enable wireless communication between a PC host and HART field devices, which are widely used in process automation and control systems. This interface is registered with the HART Communication Foundation, ensuring compliance with industry standards for reliable data exchange.
Equipped with powerful, high-speed Bluetooth technology, the interface boasts an impressive open-air range of up to 100 meters. It employs adaptive frequency hopping to significantly reduce radio-frequency interference, enhancing communication reliability in challenging industrial settings. The device is compatible with both 32- and 64-bit Windows operating systems, including Windows 7, 8, XP, 10, and Vista, and supports HARTCommDTM software for integration with FDT Frame applications, making it an essential tool for professionals in the field.
| Degree of protection | IP20 |
| Transmitter radiated power | 18 dBm |
| Signal | HART-compliant trapezoidal wave at 1200/2200 Hz |
| Cable length | 0.5 m |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
| Battery type | 3 x AAA-size batteries, 1.5 V DC, alkaline cells, type LR03 |
| Antenna | integrated omnidirectional |
| Operating system | Windows , Windows Mobile or any OS that supports Bluetooth COM port |
| Dimensions | 88 mm x 42 mm x 19 mm |
| Connection | HART I/O Interface cable , 20 AWG fine-strand , termination test clips |
| Transmitter frequency | 2402 … 2480 MHz (Bluetooth) |
| Material | Polycarbonate |
| Relative humidity | 0 … 95 % non-condensing |
| Detection range | 100 m in air |
| Physical | Bluetooth v2.0, Class 1, EDR |
| Operating temperature | -20 … 50 °C (-4 … 122 °F) |
| Hardware requirements | any PC, PDA, laptop, or other computer with Bluetooth capability |
| Storage temperature | -20 … 60 °C (-4 … 140 °F) |
| Operating duration | approx. 20 h (continuous operation) |
| IC approval | ICES-003 , IC ID: 6514A-RN413 |
| FCC approval | FCC Part 15 B , FCC ID: T9J-RN41-3 |
