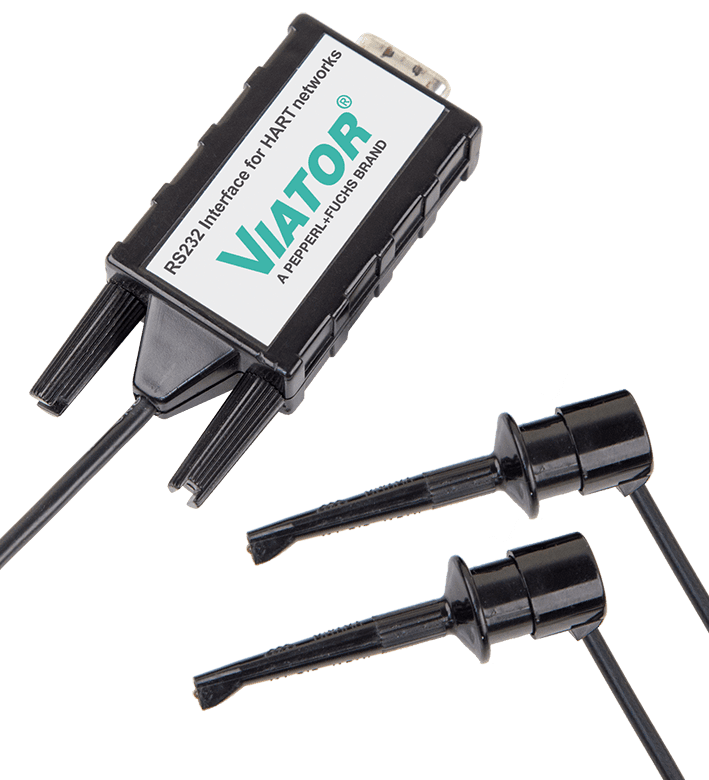

The Viator RS-232 HART Interface provides HART-compliant communication with HART field devices, ensuring reliable and error-free slave testing. Its compact design and rugged polycarbonate housing make it suitable for industrial environments.
The Viator RS-232 HART Interface serves as a crucial tool for integrating HART-enabled field devices into existing RS-232 communication systems. This interface is engineered to facilitate seamless communication and testing of HART devices, making it essential for process automation and control applications.
Designed with user convenience in mind, the interface draws power directly from the RS-232 port, eliminating the need for an external power supply. Its transformer isolation feature enables users to connect it across load resistors or directly with field devices, enhancing versatility in various installation scenarios. The compact and robust polycarbonate housing ensures that the device can withstand the rigors of industrial environments while maintaining operational integrity.
Common applications include remote monitoring and diagnostics of HART-compatible instrumentation, as well as configuration and calibration tasks. The device’s compatibility with multiple Windows operating systems further extends its usability, making it a reliable choice for technicians and engineers in the field.
| Operating system | operating system that supports serial COM port |
| Signal | 0.5 � 0.1 Vpp trapezoidal wave at 1200/2200 Hz |
| Power supply | 4 … 12 V , powered by DTR and RS-232 inputs , No external power required |
| Cable length | 1.8 m 2-strand wire terminating in 2 test clips |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
| Storage temperature | -20 … 60 °C (-4 … 140 °F) |
| Material | Polycarbonate |
| Relative humidity | 0 … 95 % non-condensing |
| Operating temperature | -20 … 50 °C (-4 … 122 °F) |
| Input current | 1.5 mA at 4 V , 4 mA at 12 V |
| Interface type | RS-232 port |
| Connection | DB-9 connector , 2-pin polarity-insensitive test clips |
| Dimensions | 49 mm x 33 mm x 15 mm |
| Degree of protection | IP20 |
| Output/interface | 1500 V DC |
