Out of stock

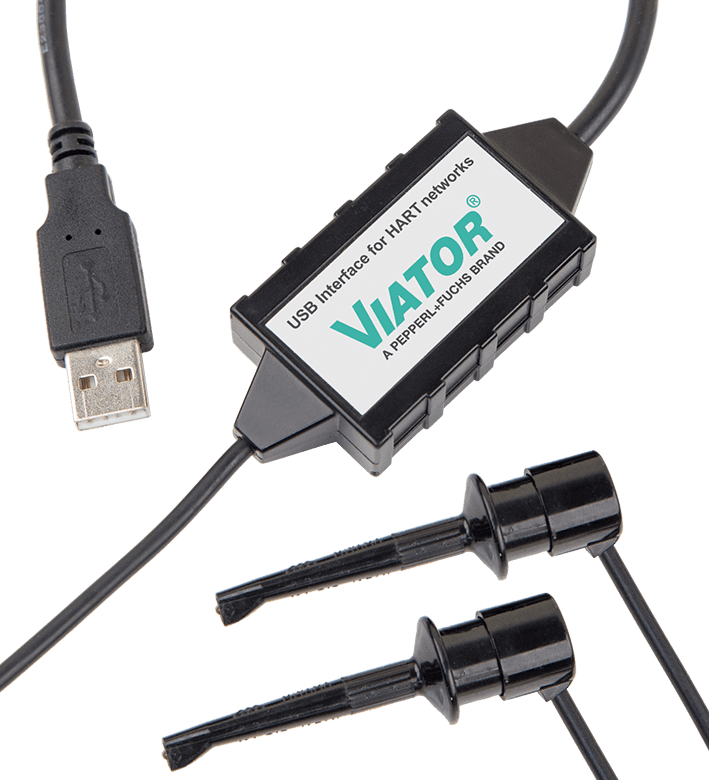

The Viator USB HART Interface is a HART compliant device designed to facilitate seamless communication with any HART field device, ensuring accurate and error-free slave testing. It operates directly from a USB port, eliminating the need for an external power supply.
The Viator USB HART Interface is a vital tool for professionals working in industries that require reliable communication with HART-enabled field devices. This interface is engineered to meet the demands of high-performance environments, providing robust connectivity for monitoring and configuring devices such as transmitters and valves. Its compact design and rugged polycarbonate housing ensure durability in industrial settings, making it suitable for various applications including process automation and remote diagnostics.
This product is particularly valuable in environments where explosion protection is critical, as it adheres to stringent safety standards. By drawing power directly from a USB port, the Viator USB HART Interface streamlines setup and operation, allowing users to focus on critical tasks without the hassle of additional power sources. Its capability for error-free slave testing enhances the reliability of maintenance operations, contributing to the overall efficiency of process control systems.
| Operating temperature | -20 … 50 °C (-4 … 122 °F) |
| Signal | 0.5 ± 0.1 Vpp trapezoidal wave at 1200/2200 Hz, 24 VDC at 40 mA to device |
| Degree of protection | IP20 |
| Material | Polycarbonate |
| Input current | 30 mA at 5 V |
| Cable length | 1.8 m 2-strand wire terminating in 2 test clips , 15.2 cm cable terminating in 1 USB type A connector |
| Connection | USB (type A) Connector , red and black test clips |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
| Power supply | Powered by USB port , No external power required |
| Interface type | USB port |
| Relative humidity | 0 … 95 % non-condensing |
| Output/interface | 1500 V DC |
| Dimensions | 75 mm x 33 mm x 15 mm |
| Storage temperature | -20 … 60 °C (-4 … 140 °F) |
