This device provides a reliable and efficient solution for powering and communicating with HART field devices. It is designed to power all 2-wire HART devices regardless of the supplier, drawing power directly from a USB port without the need for an external supply.

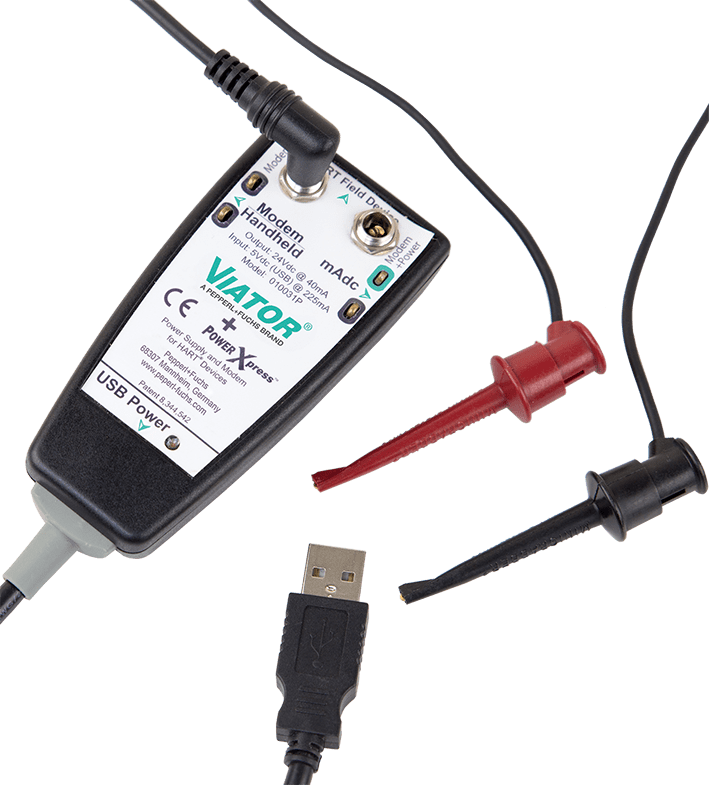

The Viator USB HART Interface with PowerXpress is engineered for industrial applications that require seamless integration with HART field devices. It is particularly effective in environments where reliable communication and power management are critical, such as in process automation and control systems. The device’s ability to power all 2-wire HART devices makes it a versatile tool for technicians and engineers working across various sectors.
With its compact and rugged polycarbonate housing, this interface is designed to withstand the rigors of industrial environments. The integrated connector cable, which includes 2 test clips and a USB connector, enhances usability by simplifying connections. Additionally, the selectable powered-modem or modem-only mode allows users to tailor the functionality to their specific needs, ensuring optimal performance in diverse operational scenarios.
| Operating temperature | -20 … 50 °C (-4 … 122 °F) |
| Connection | USB (type A) Connector , red and black test clips |
| Storage temperature | -20 … 60 °C (-4 … 140 °F) |
| Relative humidity | 0 … 95 % non-condensing |
| Signal | 0.5 ± 0.1 Vpp trapezoidal wave at 1200/2200 Hz, 24 VDC at 40 mA to device |
| Power supply | Powered by USB port , No external power required |
| Input current | 30 mA at 5 V for modem only , 255 mA at 5 V with device power and modem |
| Supplementary information | Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com. |
| Interface type | USB 2.0 port or higher |
| Dimensions | 96 mm x 47 mm x 24 mm |
| Cable length | 1.8 m 2-strand wire terminating in 2 test clips , 15.2 cm cable terminating in 1 USB type A connector |
| Operating system | Windows 98 , 2000 , 32-bit XP , 32-bit Vista , 32- and 64-bit Windows 7, and Windows 10 |
| Degree of protection | IP20 |
| Material | Polycarbonate |
| Output/interface | 500 V DC |
