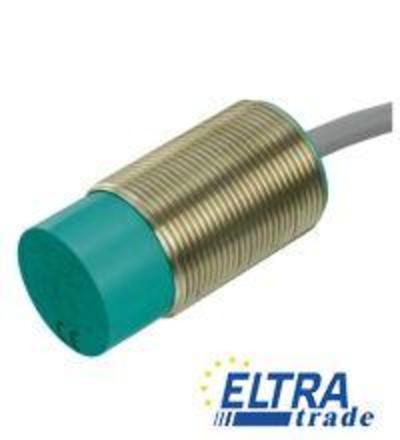

The inductive analog sensor is designed for precise proximity detection in industrial applications. With a cylindrical housing and a robust brass, nickel-plated construction, it offers durability and reliability.
Inductive proximity sensors are essential components in automation and control systems, widely used for non-contact detection of metallic objects. These sensors operate based on electromagnetic fields and are particularly effective in environments where traditional mechanical sensors may fail due to wear or contamination.
The inductive analog sensor series features a cylindrical type design with a 30 mm housing diameter, making them suitable for various installation scenarios. Their measurement range of 5 to 15 mm allows for flexible applications, while the durable brass housing ensures longevity even in challenging conditions. Typical applications include object detection on conveyor systems, position sensing in machinery, and safety applications in manufacturing environments.
With a 3-wire output and a cable connection type of PVC, the sensor is easy to integrate into existing systems. The non-flush installation capability further enhances its versatility, making it an ideal choice for a wide range of industrial applications.
| General specifications | ||
| Switching element function | Analog current output | |
| Installation | non-flush | |
| Output polarity | DC | |
| Measurement range | 5 … 15 mm | |
| Nominal ratings | ||
| Operating voltage | 15 … 30 V | |
| Repeat accuracy | 0 … 15 mm | |
| No-load supply current | less than or equal to 10 mA | |
| Analog output | ||
| Output type | 0 … 20 mA | |
| Linearity error | less than or equal to � 10 % of full-scale value | |
| Load resistor | less than or equal to 500 Om | |
| Temperature drift | less than or equal to � 0.1 %/K of full-scale value | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -10 … 70 �C (14 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 5 m | |
| Core cross-section | 0.5 mm2 | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Housing diameter | 30 mm | |
| Degree of protection | IP67 | |
