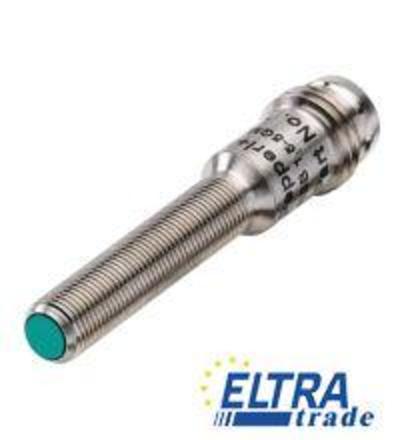

The inductive sensor from Pepperl+Fuchs is designed for reliable detection of metallic objects within a specified sensing range. With a compact cylindrical design and robust stainless steel housing, this sensor is suited for various industrial applications.
The inductive proximity sensor family is engineered for precise non-contact detection of metallic targets, making them essential in automation and control systems. These sensors operate based on the principle of inductance, where an oscillating electromagnetic field is generated, allowing for the reliable detection of conductive materials within a designated range. This technology is particularly advantageous in environments where traditional mechanical switches may fail due to wear or contamination.
Common applications of inductive sensors include use in manufacturing processes, conveyor systems, and position sensing in robotics. Their robust construction, typically featuring a stainless steel housing, offers durability in harsh environments while maintaining high performance. These sensors are often installed flush with surfaces, allowing for seamless integration into machines and equipment. The 3-wire output configuration simplifies connectivity, making these sensors compatible with a variety of control systems.
| General specifications | ||
| Switching element function | PNP NO | |
| Rated operating distance | 0.8 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 0.648 mm | |
| Reduction factor rAl | 0.45 | |
| Reduction factor rCu | 0.4 | |
| Reduction factor r304 | 0.85 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 3000 Hz | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0.1 … 100 mA | |
| Off-state current | 0 … 0.1 mA | |
| No-load supply current | less than or equal to 15 mA | |
| Switching state indicator | LED, yellow | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | Connector M8 x 1 , 3-pin | |
| Housing material | Stainless steel 1.4305 / AISI 303 | |
| Sensing face | PBT | |
| Housing diameter | 5 mm | |
| Degree of protection | IP67 | |
