Out of stock

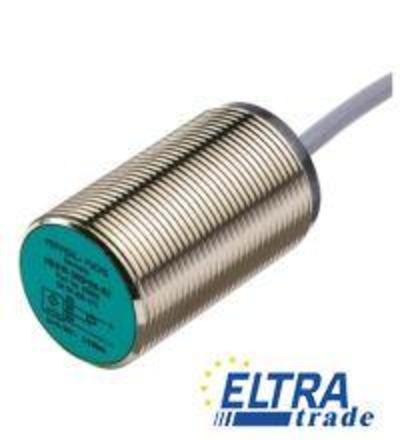

This inductive proximity sensor features a robust brass housing with a nickel-plated finish, optimized for reliable detection in various industrial applications. With a rated operating distance of 15 mm, it ensures effective sensing capabilities in diverse environments.
Inductive proximity sensors are essential components in automation and control systems, allowing for non-contact detection of metallic objects. Utilizing electromagnetic fields, these sensors can accurately sense the presence or absence of targets, making them ideal for applications in manufacturing, packaging, and assembly lines.
Commonly employed in harsh environments, inductive sensors are designed to withstand impacts and contaminants while maintaining high performance. Their flush installation capability allows for seamless integration into machinery and equipment, optimizing space utilization and enhancing operational efficiency.
These sensors are available with various connection types and voltage specifications, ensuring compatibility across different systems. Their reliable output type and long service life contribute to reduced maintenance costs and increased uptime in industrial processes.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 15 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 12.15 mm | |
| Reduction factor rAl | 0.45 | |
| Reduction factor rCu | 0.4 | |
| Reduction factor r304 | 0.7 | |
| Nominal ratings | ||
| Operating voltage | 5 … 60 V | |
| Switching frequency | 0 … 200 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 2.5 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA at 25 °C | |
| No-load supply current | less than or equal to 10 mA | |
| Switching state indicator | all direction LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1260 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| E1 Type approval | 10R-04 | |
| Ambient conditions | ||
| Ambient temperature | -40 … 85 °C (-40 … 185 °F) | |
| Mechanical specifications | ||
| Connection type | cable PUR , 2 m | |
| Core cross-section | 0.75 mm2 | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Housing diameter | 30 mm | |
| Degree of protection | IP68 / IP69K | |
