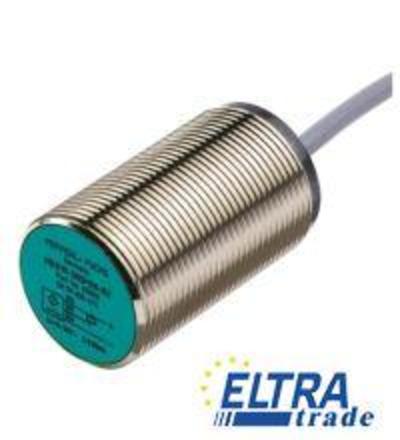

The inductive sensor is a reliable and essential component in automation technology, designed for non-contact detection of metallic objects. With a cylindrical housing diameter of 30 mm and a rated operating distance of 15 mm, it provides consistent performance across various applications.
Inductive proximity sensors are widely used in industrial automation for detecting the presence of metallic objects without physical contact. These sensors utilize electromagnetic fields to sense the proximity of metal, making them invaluable in applications such as assembly lines, conveyor systems, and robotic automation. The cylindrical design and robust construction ensure durability and resistance to environmental factors, allowing for reliable operation in various settings.
The sensor operates with a rated operating distance of 15 mm, making it suitable for close-range detection tasks. Its flush installation capability allows for easy integration into machinery and equipment, while the brass, nickel-plated housing provides enhanced protection against corrosion. The cable connection type facilitates straightforward installation and maintenance, ensuring seamless integration into existing systems.
| General specifications | ||
| Switching element function | AC/DC |
|
| Rated operating distance | 15 mm | |
| Installation | flush | |
| Output polarity | AC/DC NO contact | |
| Reduction factor rAl | 0.5 | |
| Reduction factor rCu | 0.45 | |
| Reduction factor r304 | 0.75 | |
| Nominal ratings | ||
| Operating voltage | 20 … 250 V AC/20 … 300 V DC | |
| Switching frequency | 30 Hz | |
| Hysteresis | 3 … 15 typ. 5 % | |
| Reverse polarity protection | reverse polarity tolerant | |
| Short-circuit protection | yes | |
| Voltage drop | less than or equal to 8 V | |
| Operating current | 4 … 500 mA AC/DC | |
| Off-state current | less than or equal to 0.8 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | cable PUR , 2 m | |
| Core cross-section | 0.5 mm2 | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Housing diameter | 30 mm | |
| Degree of protection | IP67 | |
