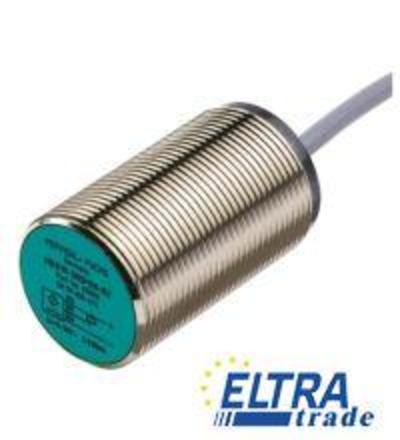

The inductive sensor is a cylindrical type proximity sensor designed for non-contact detection of metallic objects. With a housing diameter of 30 mm and a rated operating distance of 15 mm, it effectively senses presence and movement in various industrial applications.
The Pepperl+Fuchs inductive proximity sensors are engineered for reliable and precise detection of metallic targets without physical contact. Their robust design includes a nickel-plated brass housing, which ensures durability in demanding environments. These sensors are particularly well-suited for automation processes, material handling, and machine safety applications, making them essential components in various industrial settings.
Equipped with a 2-wire output and a standard cable connection type, these sensors facilitate easy integration into existing systems. The ability to install them in a quasi-flush manner allows for flexible placement in confined spaces, maximizing their effectiveness. Operating on AC voltage, these sensors are versatile and can be utilized across a wide range of operating conditions, further enhancing their appeal for industrial automation solutions.
| General specifications | ||
| Switching element function | AC |
|
| Rated operating distance | 15 mm | |
| Installation | quasi flush | |
| Output polarity | AC | |
| Assured operating distance | 0 … 12.15 mm | |
| Reduction factor rAl | 0.33 | |
| Reduction factor rCu | 0.28 | |
| Reduction factor r304 | 0.81 | |
| Nominal ratings | ||
| Operating voltage | 20 … 253 V | |
| Switching frequency | 0 … 20 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | reverse polarity tolerant | |
| Voltage drop | < 5 V (IL > 50 mA)- < 8 V (IL < 50 mA) | |
| Momentary current (20 ms, 0.1 Hz) |
0 … 1600 mA | |
| Operating current | 5 … 200 mA | |
| Off-state current | 0 … 1.7 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | cable PVC , 2 m | |
| Core cross-section | 0.75 mm2 | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Housing diameter | 30 mm | |
| Degree of protection | IP67 | |
| Note | 1) In the temperature range below 0 �C, permissible operating voltage Ub 80…253 V Safety fuse less than or equal to 0.3 A (quick-blow) according to IEC 60127-2 Sheet 1 Recommendation: after a short circuit, check that the device is functioning correctly. |
|
