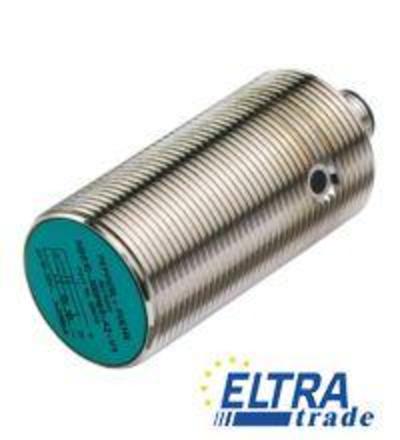

The inductive sensor family from Pepperl+Fuchs consists of cylindrical sensors designed for non-contact detection of metallic objects. With a rated operating distance of 15 mm, these sensors are suitable for various industrial applications.
Inductive proximity sensors are essential components in automation and control systems, primarily designed to detect the presence of metallic objects without any physical contact. These sensors work on the principle of electromagnetic induction, where an oscillating magnetic field generated by the sensor interacts with metallic objects, allowing for reliable detection in various environments.
The cylindrical type sensors, particularly with a housing diameter of 30 mm, are widely used in applications such as conveyor systems, machine automation, and packaging equipment. The robust brass housing, nickel-plated for added durability, ensures reliable performance in harsh industrial conditions. The flush installation capability allows for seamless integration into existing machinery, while the 4-wire output type and M12 x 1 connector facilitate straightforward electrical connectivity.
Common applications for these inductive sensors include position sensing, object counting, and safety monitoring. Their versatility and reliability make them a vital choice in sectors such as manufacturing, logistics, and robotics.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 15 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 12.15 mm ( -25 … 70 °C (-13 … 158 °F) ) 0 … 11.4 mm ( -40 … -25 °C (-40 … -13 °F) ) |
|
| Reduction factor rAl | 0.3 | |
| Reduction factor rCu | 0.3 | |
| Reduction factor r304 | 0.75 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 200 Hz | |
| Hysteresis | typ. 5% | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA at 25 °C | |
| No-load supply current | less than or equal to 25 mA | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1000 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -40 … 70 °C (-40 … 158 °F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Housing diameter | 30 mm | |
| Degree of protection | IP67 | |
