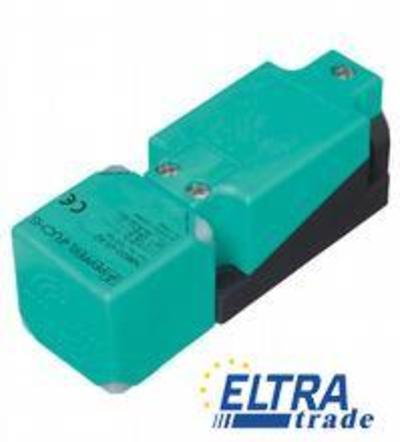

The inductive sensor from Pepperl+Fuchs is designed for precise detection of metallic objects without contact. With a rated operating distance of 15 mm, it ensures reliability in various industrial applications.
The inductive proximity sensors from Pepperl+Fuchs are engineered for non-contact detection of metallic objects, making them essential components in automation and control systems. These sensors operate on the principle of electromagnetic induction, allowing them to function effectively in harsh environments where traditional mechanical switches may fail. Their robust housing, composed of PA and metal with an epoxy powder coating, ensures durability and resistance to various industrial conditions.
Common applications for these sensors include position detection, object counting, and automation processes within manufacturing and assembly lines. Their flush installation capability and 4-wire output type facilitate seamless integration into existing systems, while the use of DC voltage enhances their versatility across different setups. The inductive proximity sensors are particularly favored in environments where cleanliness and maintenance are critical, such as food processing and pharmaceutical industries.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 15 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 12.15 mm | |
| Reduction factor rAl | 0.33 | |
| Reduction factor rCu | 0.3 | |
| Reduction factor r304 | 0.74 | |
| Reduction factor rBrass | 0.41 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 200 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 2 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA | |
| No-load supply current | less than or equal to 20 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1230 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 85 �C (-13 … 185 �F) | |
| Mechanical specifications | ||
| Connection type | screw terminals | |
| Core cross-section | max. 2.5 mm2 | |
| Housing material | PA/metal with epoxy powder coating | |
| Sensing face | PA | |
| Degree of protection | IP68 / IP69K | |
| Mass | 225 g | |
| Note | Tightening torque: 1.8 Nm (housing) Tightening torque: 1.0 Nm (Screw terminal) |
|
