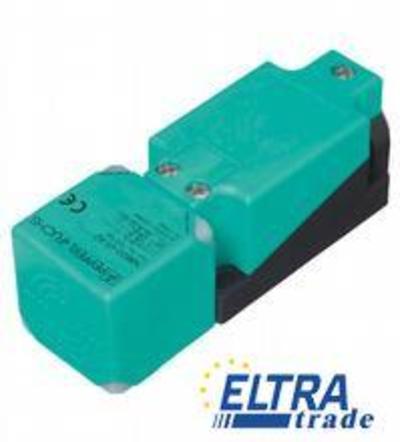

The inductive sensor from Pepperl+Fuchs is designed for reliable detection of metallic objects without direct contact. With a rated operating distance of 15 mm and a robust housing made of PA/metal with an epoxy powder coating, it ensures durability in various environments.
Inductive proximity sensors are essential components used in automation and control applications to detect the presence of metallic objects. These sensors operate on the principle of electromagnetic fields, allowing them to sense target objects without physical contact, which enhances their longevity and reliability in demanding conditions.
Common applications for inductive sensors include automation in manufacturing processes, material handling systems, and safety equipment. Their flush installation capability and compatibility with DC voltage make them versatile for integration in diverse environments. The sensors are equipped with screw terminals for easy connection and a 2-wire output type that simplifies wiring in automated systems.
| General specifications | ||
| Switching element function | DC |
|
| Rated operating distance | 15 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 12.15 mm | |
| Reduction factor rAl | 0.3 | |
| Reduction factor rCu | 0.3 | |
| Reduction factor r304 | 0.7 | |
| Nominal ratings | ||
| Operating voltage | 5 … 60 V | |
| Switching frequency | 0 … 400 Hz | |
| Hysteresis | typ. 5 % | |
| Reverse polarity protection | reverse polarity tolerant | |
| Short-circuit protection | yes | |
| Voltage drop | less than or equal to 5 V | |
| Operating current | 2 … 200 mA | |
| Off-state current | 0 … 0.5 mA | |
| Switching state indicator | 2 LED, yellow | |
| Functional safety related parameters | ||
| MTTFd | 1133 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
| Ambient conditions | ||
| Ambient temperature | -25 … 85 �C (-13 … 185 �F) | |
| Mechanical specifications | ||
| Connection type | screw terminals | |
| Core cross-section | max. 2.5 mm2 | |
| Housing material | PA/metal with epoxy powder coating | |
| Sensing face | PA | |
| Degree of protection | IP68 / IP69K | |
| Mass | 225 g | |
| Note | Tightening torque: 1.8 Nm (housing) Tightening torque: 1.0 Nm (Screw terminal) |
|
