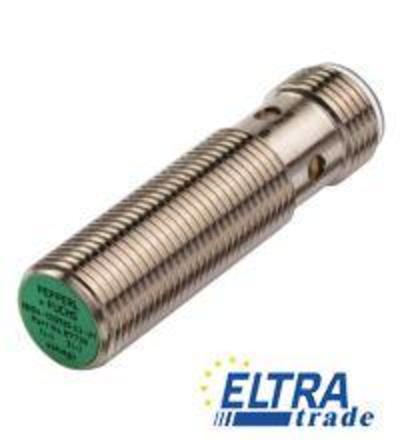

The inductive sensor is a cylindrical type proximity sensor designed for reliable detection of metallic objects. With a housing diameter of 12 mm and a rated operating distance of 2 mm, it is well-suited for various automation applications.
Inductive proximity sensors are essential components in automation and industrial applications, utilized for detecting the presence of metallic objects without direct contact. These sensors operate on the principle of electromagnetic induction, generating an oscillating electromagnetic field that interacts with conductive materials. When a metal object enters this field, it alters the oscillation frequency, triggering the sensor and providing a reliable output signal.
The cylindrical design of these sensors, particularly with a 12 mm housing diameter, allows for easy integration into tight spaces and various mounting configurations. Common applications include assembly lines, packaging machinery, and material handling systems, where precise object detection is crucial for operational efficiency. The sensors are designed for flush installation, providing robustness and durability in demanding environments, while their DC voltage type ensures compatibility with a wide range of control systems.
| General specifications | ||
| Switching element function | PNP |
|
| Rated operating distance | 2 mm | |
| Installation | flush | |
| Output polarity | DC | |
| Assured operating distance | 0 … 1.62 mm | |
| Reduction factor rAl | 0.3 | |
| Reduction factor rCu | 0.2 | |
| Reduction factor r304 | 0.7 | |
| Nominal ratings | ||
| Operating voltage | 10 … 30 V | |
| Switching frequency | 0 … 800 Hz | |
| Hysteresis | typ. 10 % | |
| Reverse polarity protection | reverse polarity protected | |
| Short-circuit protection | pulsing | |
| Voltage drop | less than or equal to 3 V | |
| Operating current | 0 … 200 mA | |
| Off-state current | 0 … 0.5 mA typ. 0.1 mA at 25 �C | |
| No-load supply current | less than or equal to 15 mA | |
| Functional safety related parameters | ||
| MTTFd | 2690 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | CCC approval / marking not required for products rated less than or equal to 36 V | |
| Ambient conditions | ||
| Ambient temperature | -25 … 70 �C (-13 … 158 �F) | |
| Mechanical specifications | ||
| Connection type | Connector M12 x 1 , 4-pin | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Housing diameter | 12 mm | |
| Degree of protection | IP67 | |
